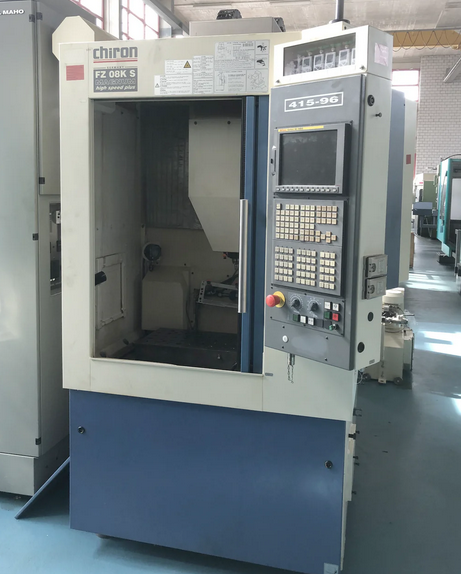

Chiron FZ 08 KS Magnum 3 Axis

X Axis Travel: 450 mm
Y Axis Travel: 270 mm
Z Axis Travel: 310 mm
Rapid Traverse: 75 m/min
Control: GE Fanuc Series 18i-MB5
Tool Break Control
RS232 Interface
Switch Cabinet Air Conditioner
Status Light
3 Axis
1 Spindle
Table Size: 770 x 290 mm
Drill Capacity: 12 mm
Maximum Tapping Diameter: M8
Spindle Speed: 30000 rpm
Spindle Taper: HSK-A40 DIN 69893
Spindle Motor: 7 kW
24 Station Tool Changer
Maximum Tool Diameter: 47 mm
Maximum Tool Diameter with Adjacent Pocket Free: 100 mm
Maximum Tool Length: 160 mm
Maximum Tool Weight: 1.2 kg
Tool Change Time: 0.8 / 2.3 sec
Chip to Chip Time: 2.2 sec
Air Connection: 6 bar
Electrical: 3 x 400V / 50 Hz
Total Power Required: 14 kW
Total Power Required: 19 kVA
Machine Dimensions: 2308 x 1405 x 2447 mm
Machine Weight: 3400 kg
