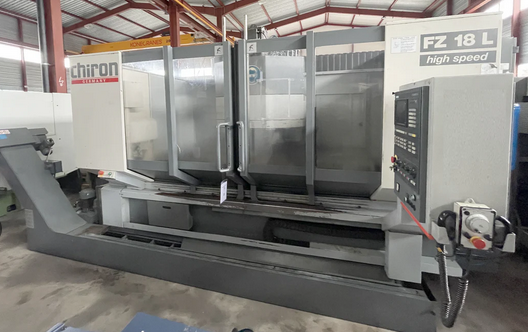

Chiron FZ 18 L 3 Axis
Ref :
2797672-3-MT
Condition :
Used
Manufacturer :
Chiron
Model :
FZ 18 L
Nb Of Axis :
3 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel: 2000 mm
Y-Axis Travel: 400 mm
Z-Axis Travel: 425 mm
Control: SIEMENS SINUMERIK 810 M
Coolant System
Chip Conveyor
Electronic Handwheel
Spindle Taper: SK40 DIN 69871
Spindle Speed: 20 – 10,500 RPM
Spindle Motor: 18 kW
Tool Capacity: 20
Tool Diameter: 65 mm
Tool Diameter with Free Adjacent Pockets: 180 mm
Max Tool Length: 220 mm
Max Tool Weight: 8 kg
Table Length: 2280 mm
Table Width: 450 mm
Number of T-Slots: 3
T-Slot Spacing: 150 mm
T-Slot Width: 18 mm
Air Connection: 6 bar
Voltage: 3 x 400 V / 50 Hz
Total Power Required: 31 kVA
Machine Dimensions: 4000 x 3010 x 3040 mm
Machine Weight: 7200 kg
