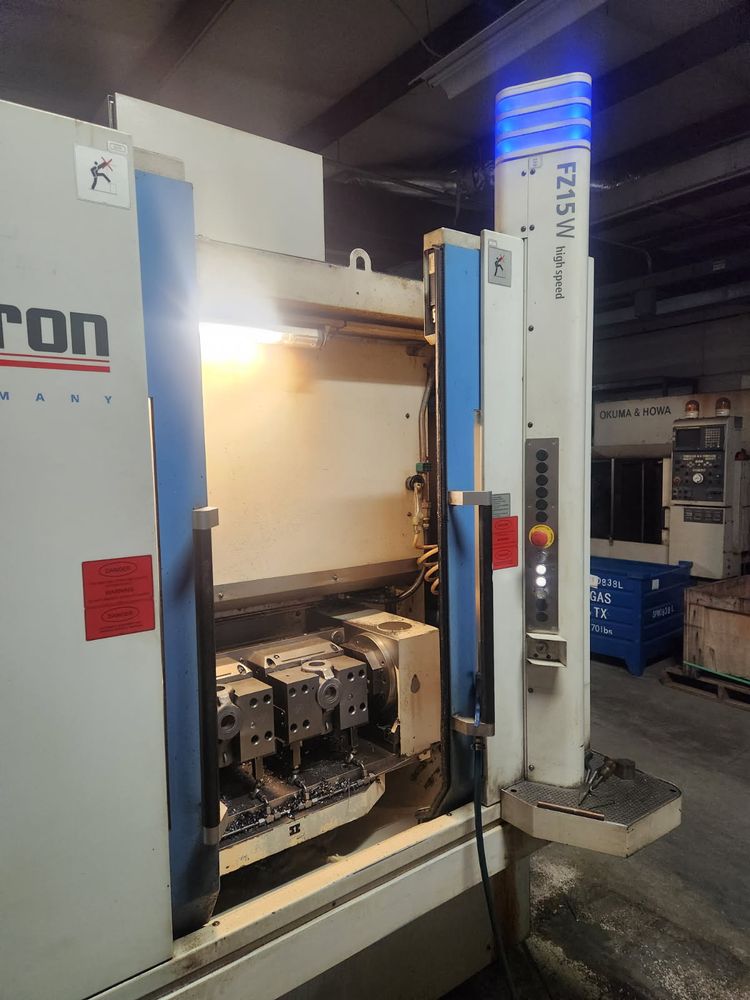

Chiron FZ 15 W 3 Axis

Technical Data
X-axis travel: 21.65 in
Y-axis travel: 15.75 in
Z-axis travel: 16.73 in
Workpiece swivel table: 0° / 180°
Max table weight difference: 220 lbs
Control: Fanuc 31i A5 5-Axis CNC
Table size (each side): 26 × 15.75 in
Table load capacity (per side): 660 lbs
Max spindle speed: 10,500 rpm
Spindle motor: 50 HP
Spindle taper: CAT 40
Tool capacity: 20 tools (umbrella)
Drilling capacity (steel): 1.42 in
Tapping capacity: M24
Milling capacity (steel): 18 in³/min

Accessories / Equipment
Workpiece swivel table with center divider
Digital AC servo direct drives
Thermodrive temperature compensation
Automatic tool changer (20 station umbrella)
High pressure coolant
Ethernet and RS-232C communication
Rigid tapping
All available manuals
