Chiron FZ 08K S Magnum High Speed Plus (HSP) 7

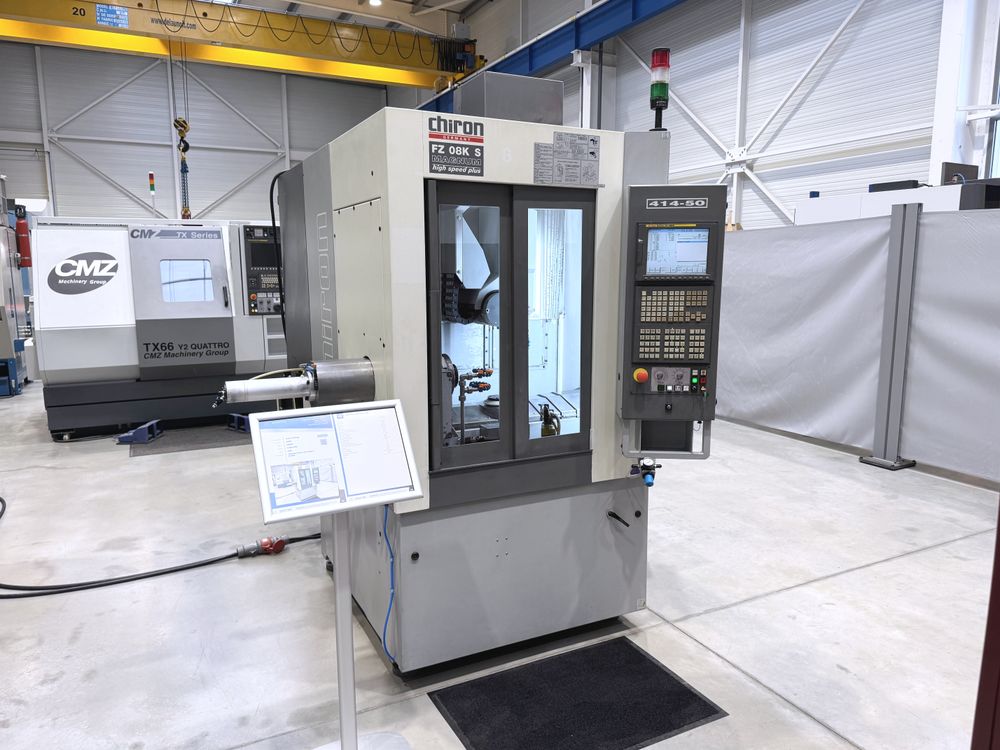

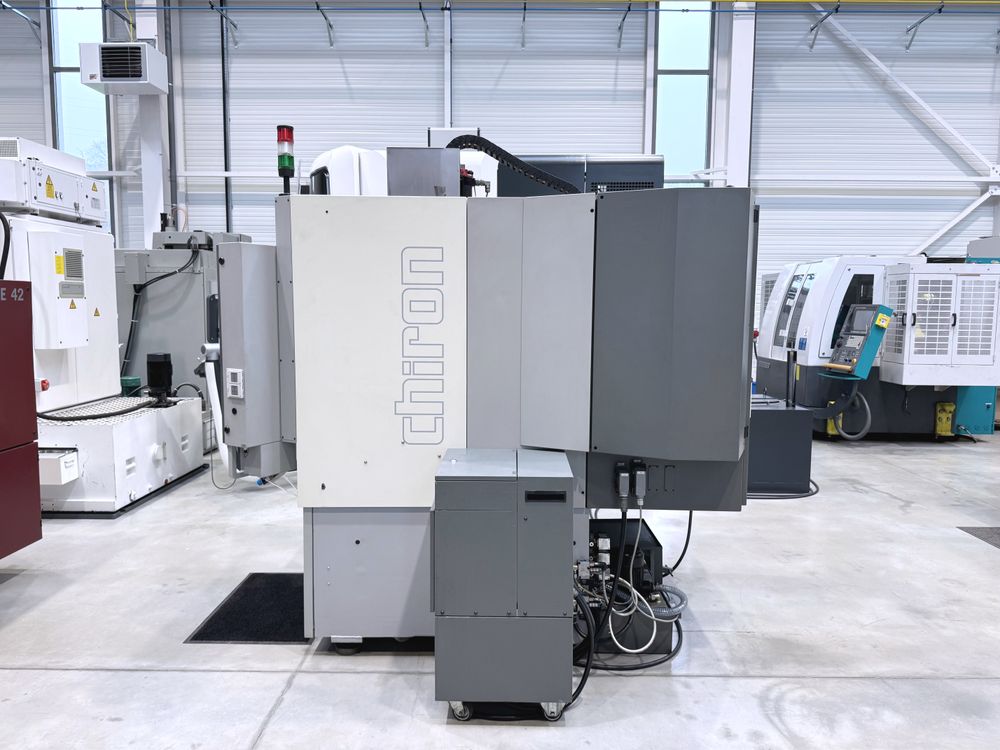

CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP)



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2006

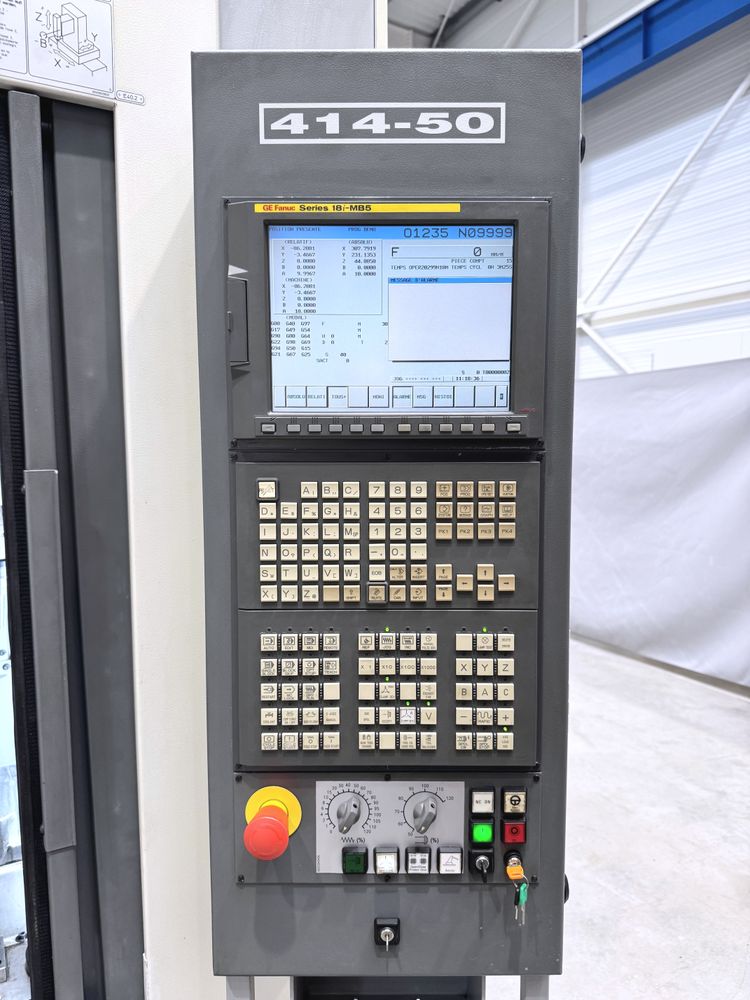

CNC control : FANUC 18i-MB5
Number of axes : 7
Stroke X axis : 450 [mm]
Stroke Y axis : 270 [mm]
Stroke Z axis : 310 [mm]
Traversing feeds X, Y and Z axes : 75000 [mm/min]

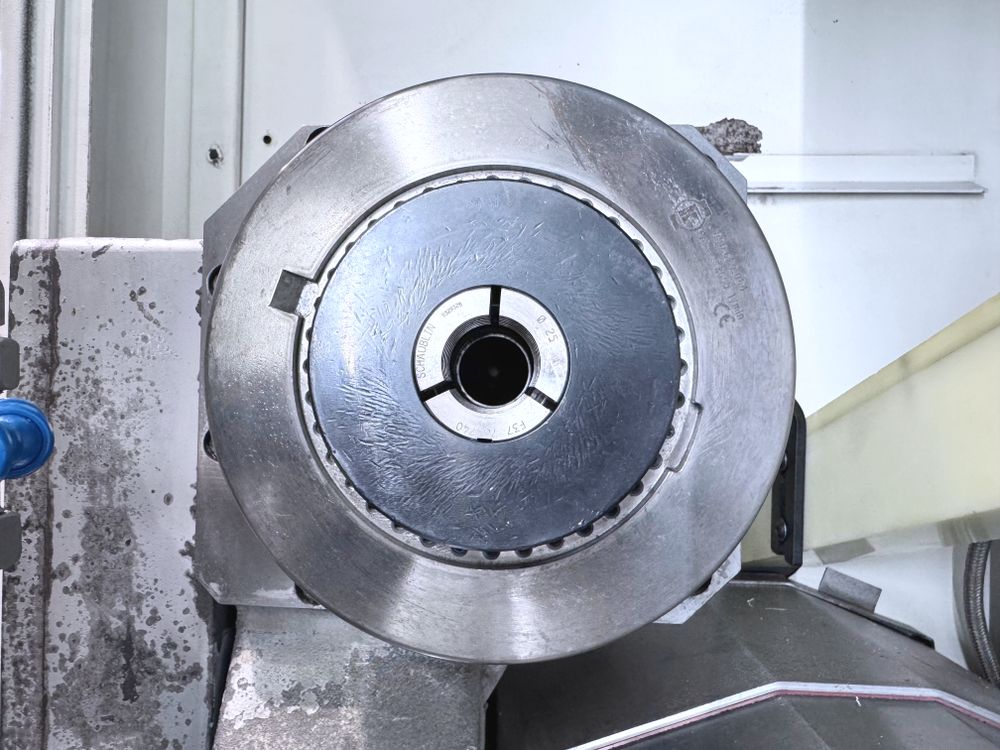

Max. bar diameter in turning spindle : 32 [mm]
Main spindle max. speed : 8000 [rpm]
Main spindle max. power : 12 [kW]
Angular A axis stroke : 360 [°]
A axis indexing precision : 0.001 [°]
B axis swivelling stroke : -20° / +115 [°]
B axis indexing precision : 0.001 [°]

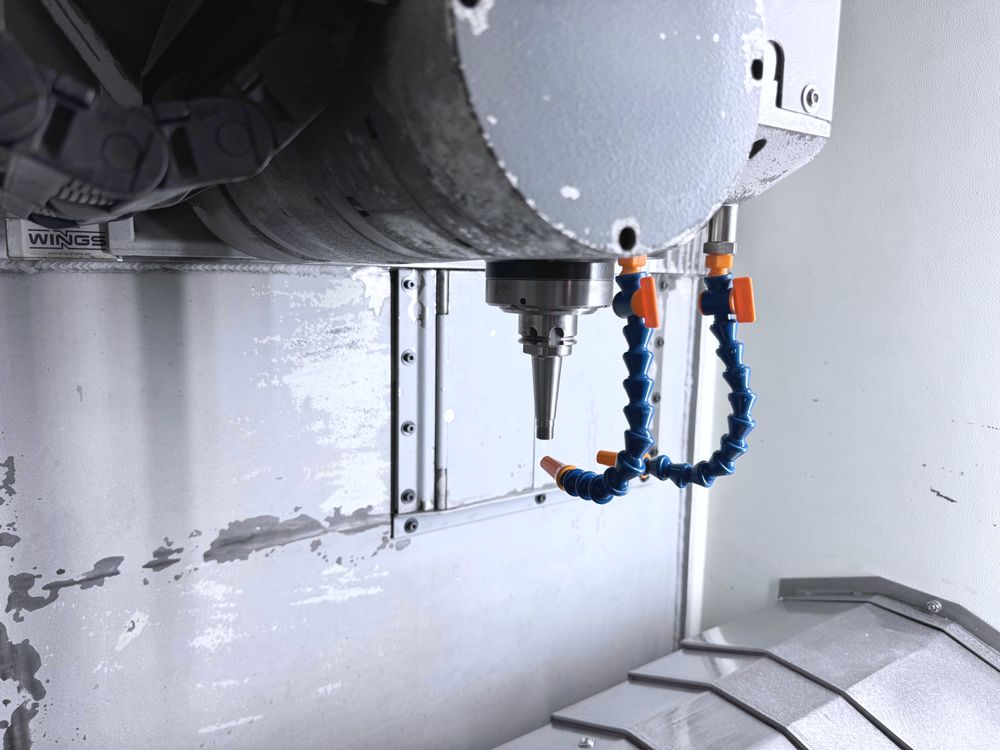

Spindle type : HSK40
Max. spindle speed : 30000 [rpm]
Tool changer magazin number of stations : 40
Part turnaround by robot (6th side machining) : Yes
RS232 Interface : Yes
Total power required : 17 [kVA]
Supply voltage : 400 [V]
Number of running hours : 9911 [h]
Dimensions : 1500 x 2600 x 2300 [mm]
Weight : 3400 [Kg]


EQUIPMENT INCLUDED:

x1 RENISHAW TS27R tool probe
x1 spindle cooling unit
x1 parts catcher
x1 coolant tank
x1 unit for 6th face machining (gripping system not included)

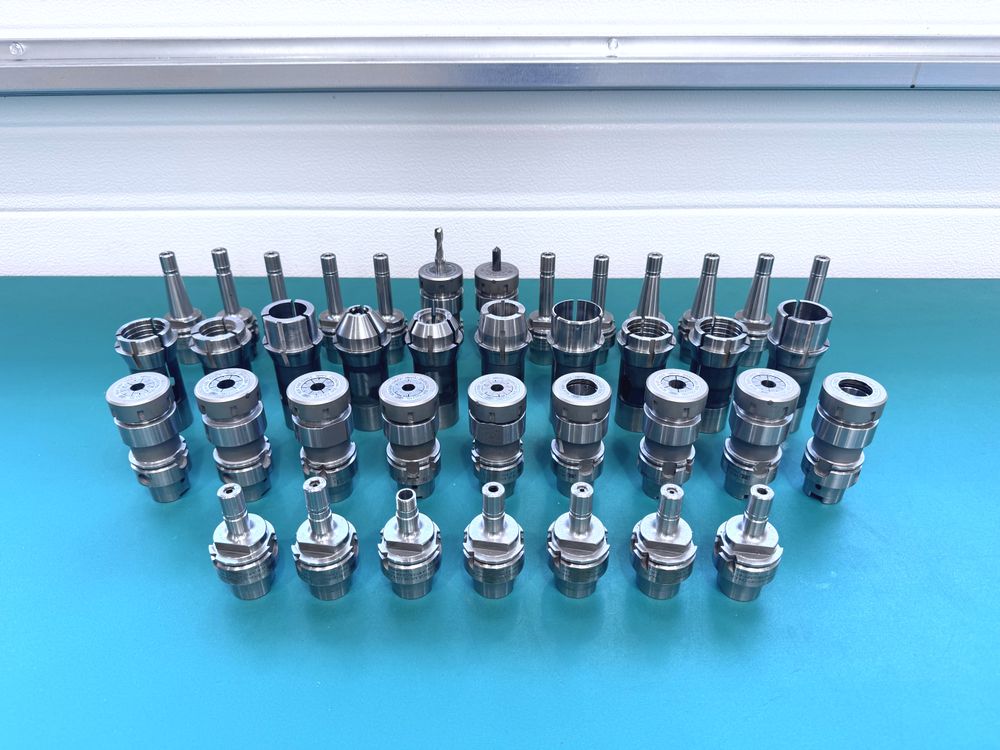

x29 tool holders type HSK40 BIG KAISER
x10 collets type F37 SCHAUBLIN
x1 washing gun
x1 3-color status light
x1 maintenance manual

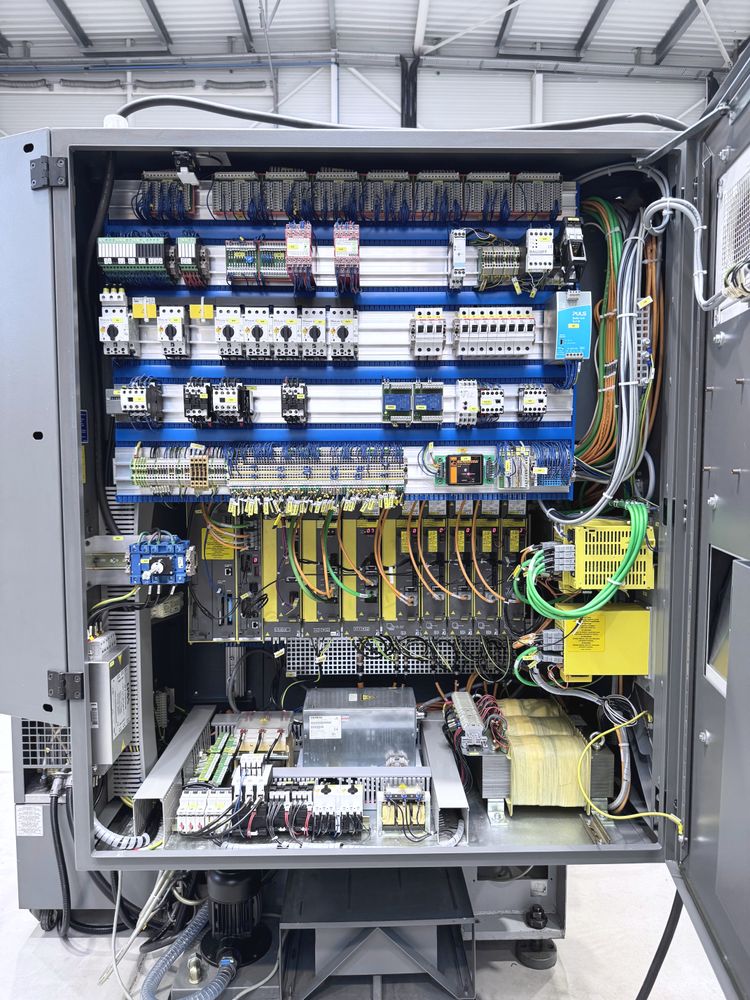

x1 electrical diagrams manual
x1 operator's manual
x1 programming manual



Price on request, loading on truck included.

Possibility of shipping Worldwide.
