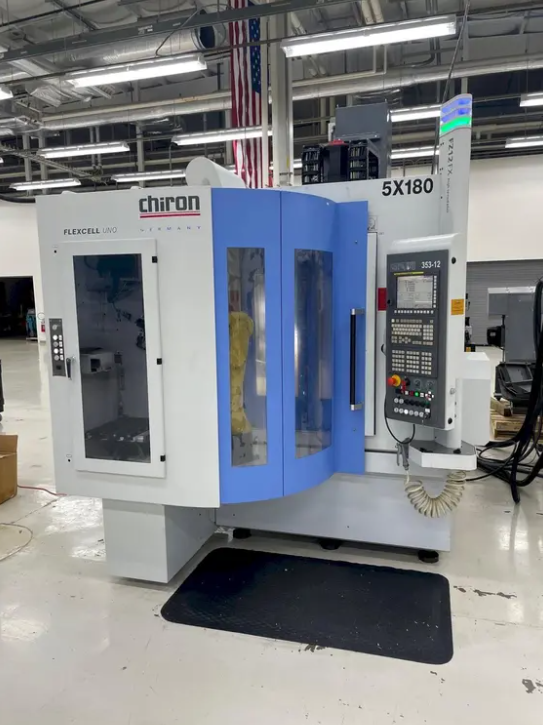

Chiron FZ12 FX 5 Axis

X-Axis Travel 21.654"
Y-Axis Travel 15.748"
Z-Axis Travel 15.748"
5 Axis
Spindle RPM 24,000
Spindle Taper HSK50A
Power 48.3 hp
Fanuc 31i-B5 CNC Control
48 Tool ATC
Glass Scale Feedback XYZ / Direct Feedback A/C
Shunk Hydraulic Vise KSH 160
Renishaw Probe RLPQ40
Renishaw Contact Tool Breakage Detection TS27R
External Coolant System with Cooler Barnes S30C
Chip Conveyor
Mist Collector
Wash Down Coolant, Fixture Washing
Thru Spindle Coolant
Rotary Spin Window
Includes 30 pcs Tool Holders – Shrink Fits and Collet Chucks
200 Bar Hydraulic Connection for Table Fixturing Integrated into A/C Axis Table
Auto Door
Integrated Fanuc Load/Unload Robot with Chiron Tray Loading System Up to 24 Pallets/Trays
FlexCell Uno Universal Automatic Loading and Unloading System
Tray for NIO Parts, Machine Equipment, Loader Interface, Direct Door Switch
Pallet Stack for 300 x 400 mm Pallets, Max Stack 24 Pallets at 20 mm, Adjustable for Larger Pallets
