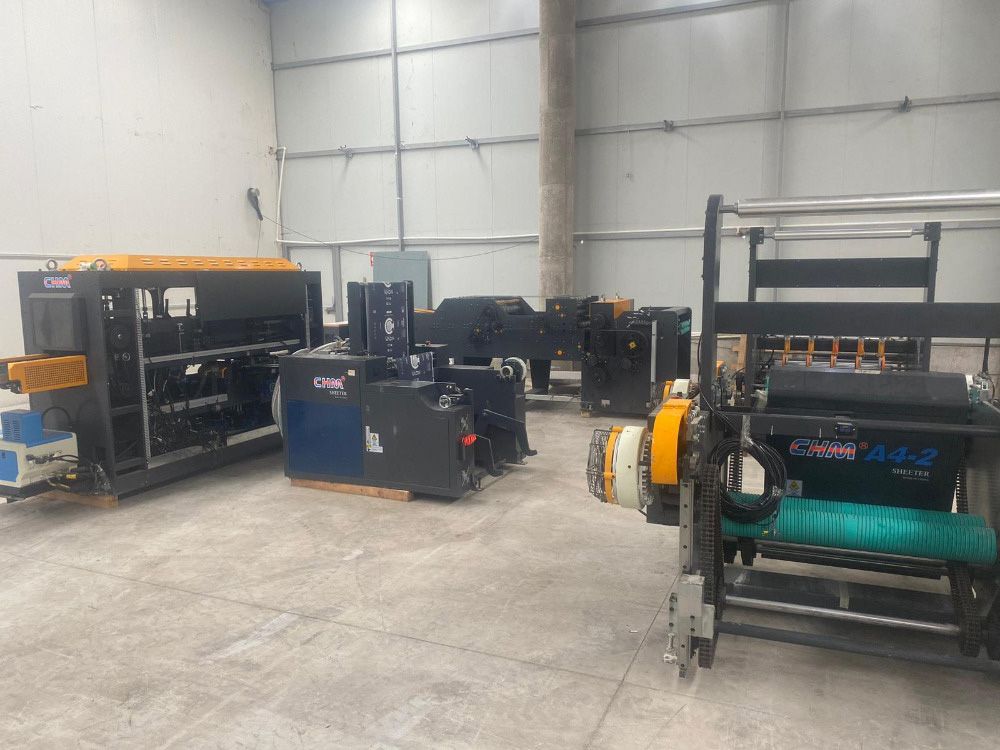

CHM A4 complete sheeting line

DIN A4 complete paper converting line for sale

included as well , outside the sheeter A4
cardboard packaging machine,
strapping machine,
stacking machine

Make CHM ( China)

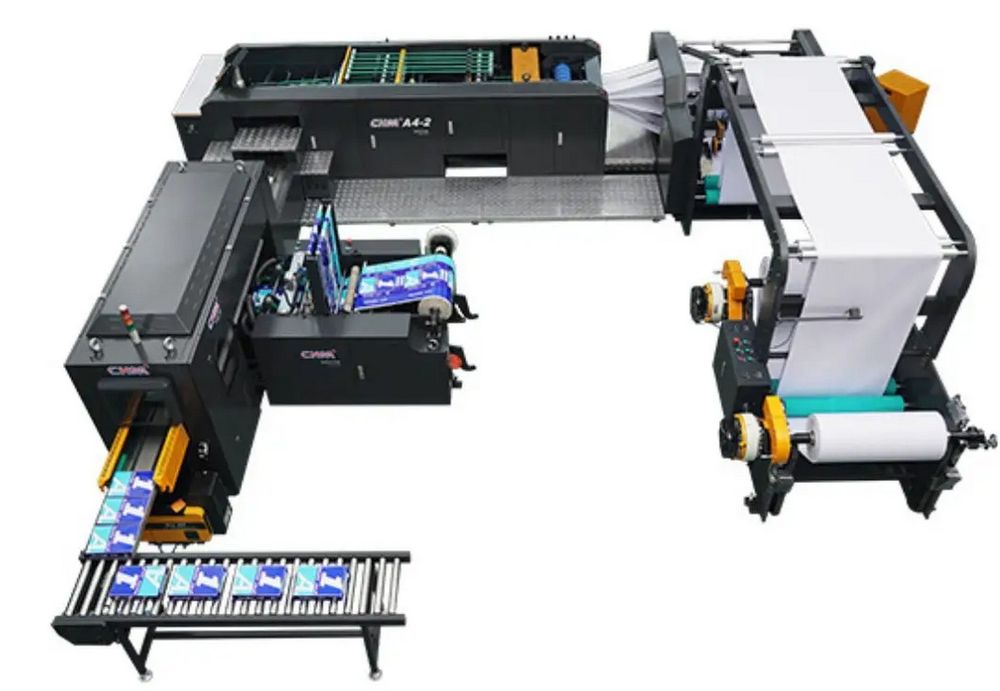

Details: this small, highly efficient production line for A4 copy paper sheets and packaging utilizes state-of-the-art Twin Rotary Knife Synchronized
Sheeting technology. It is capable of fully automated packaging of reams and cartons.

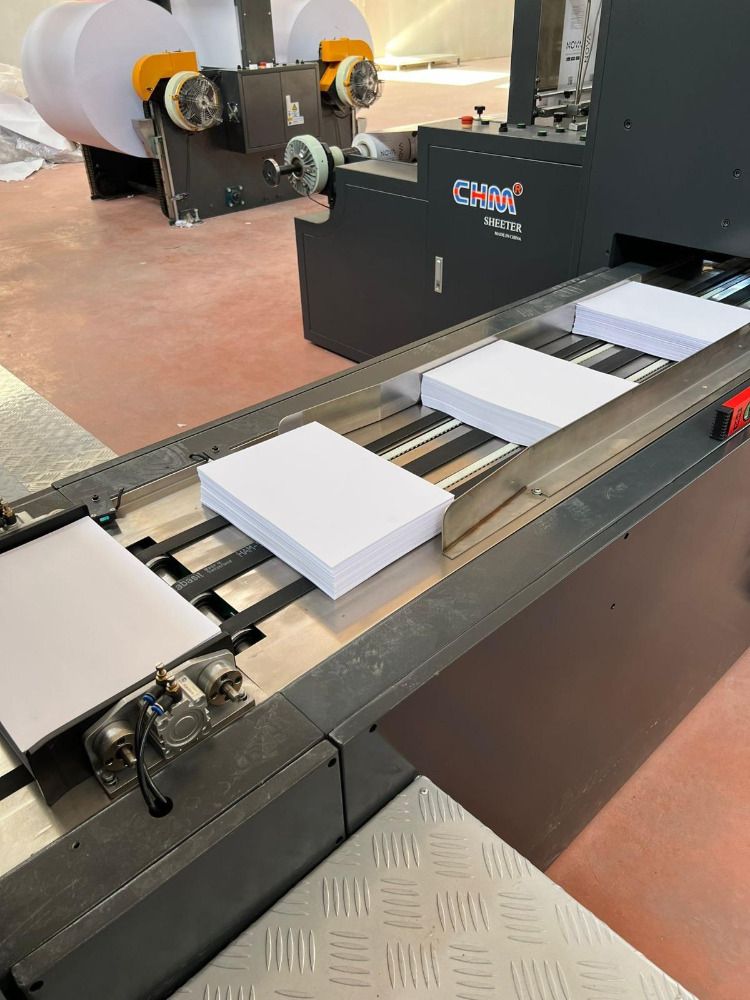

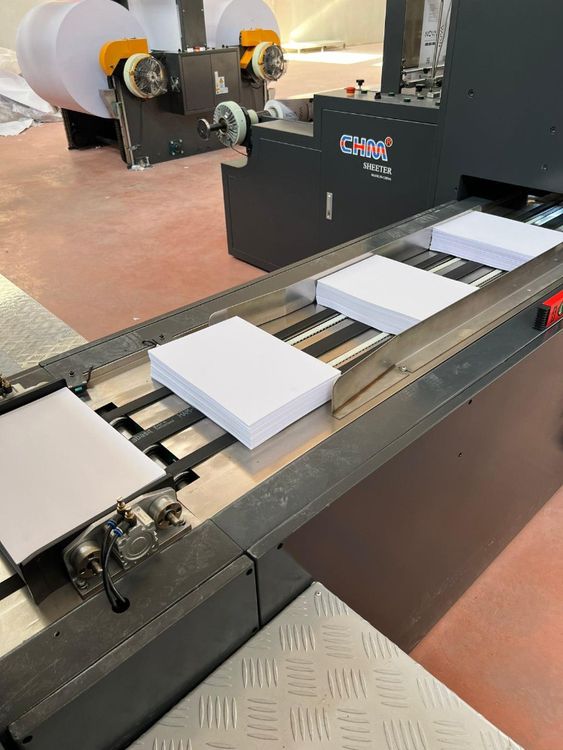

The following machine-technical specifications describe the following functions and workflows for paper products: Unwinding → Cutting →
Conveying → Collecting → Packaging. ( see below 1/2/3 specifications of each part of the line ; also available upon request is a pdf with details and diagrams)

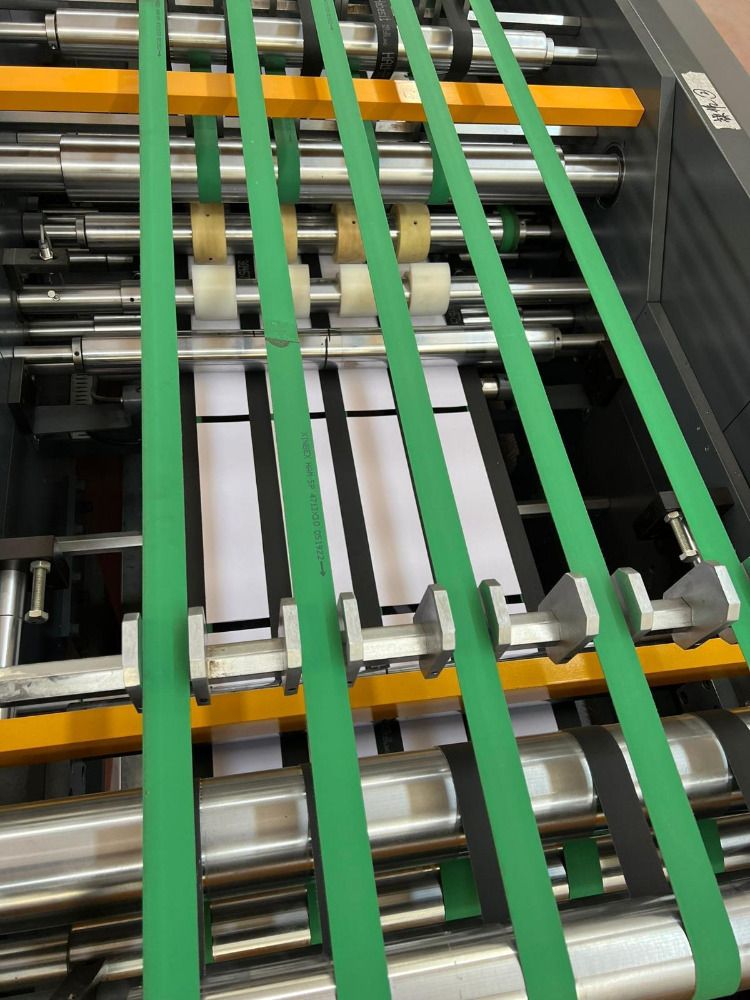

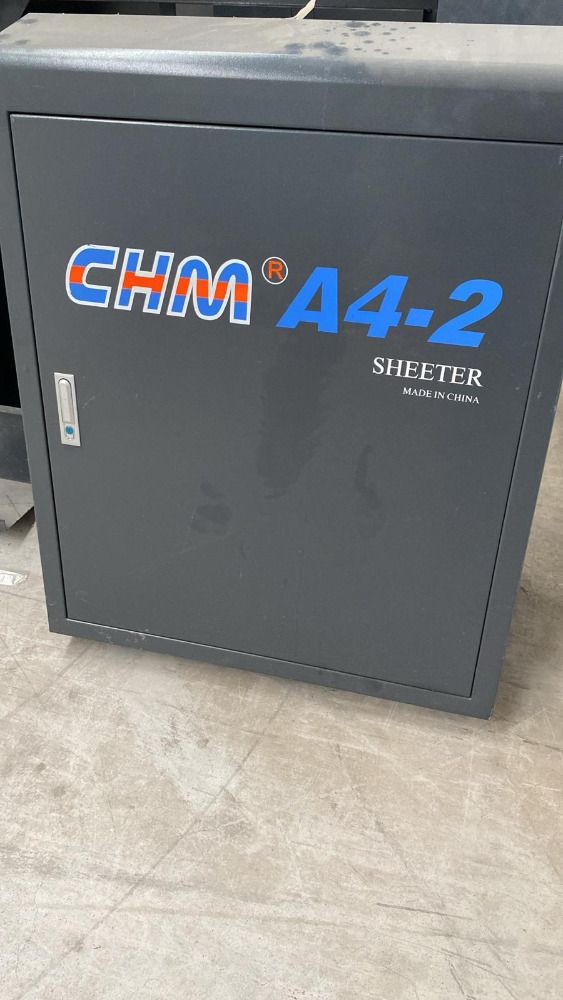

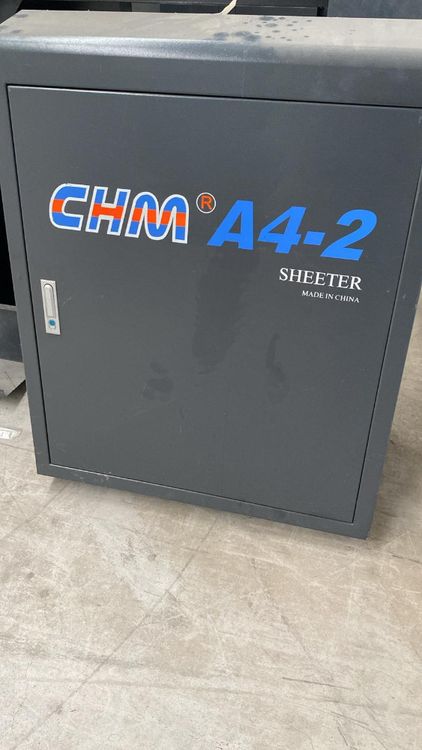

1/ CHM-A4-2 (pocket) size cutting machine
Paper width 850 millimeters, usable width 840mm
Intersection of numbers 2 cutting A4 210 millimeters (width)
The diameter of the paper roll Max. 1400mm. Min. 600mm.
The diameter of the sleeve 3" (76.2mm) or according to customer demand
Wrapping paper grade High-quality copy paper; High-quality office paper; High quality free wooden paper etc.
Paper weight 60-100 g/m2
Leaf height 297mm (especially design for A4 paper, the cutting length is 297mm)
Package quantity 500 sheets Max. Height: 45-55mm
Production speed Maximum 0-250 m/min (depending on the different paper quality)
Max. Numbers of the section Maximum 841/min
Yield of the package Maximum 13 packages/minute
Load of the cutout 100 g/m2 (1×100g/m2)
Cut of accuracy ±0.2mm
Cut of condition No change in speed, no break, cut the whole paper at once and need the appropriate paper
Main power supply 3*380V/50HZ
Tension 220V DC AC/24V
energy 22 kilowatts
Air consumption 200 NL/min
Air pressure Pole 6
Edge cutout 5~15mm*2
Safety standard Design that complies with China's safety standard

2/ CHM-A4B packaging machine
Paper width : 310mm; Usable width: 297mm
Package-packing high Maximum 55mm; Minute 45mm
Packing roll diameter. Max. 1000mm; Min. 200mm

3/CHM-A4B packaging machine
Packing roll width 560 millimeters
Packaging sheet weight 70-100 g/m2
Organize packaging sheets high-quality copy paper, high-quality office paper, high-quality offset paper etc.
Design speed Maximum 50 packages/minute
Operation speed Maximum 35 packages/minute
Packaging condition no changes in speed, no breaks, cut at once all the paper and qualified wrapping paper.
Drive AC servo precision control
Main power supply 3*380V/50HZ (or as required)
Tension 220 V DC AC/24V (or as required)
energy 18 kilowatts
Compressive air consumption 300 NL/min
air compressor Pole 6
