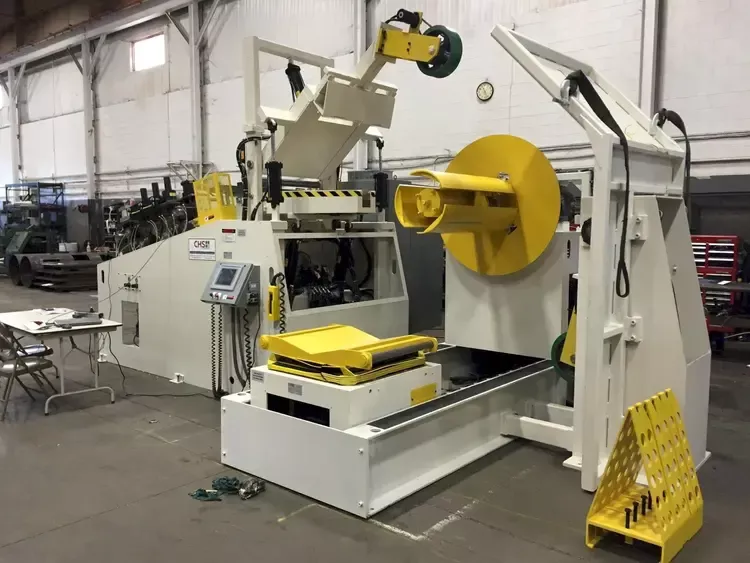

CHS AUTOMATION R200 / PS500 / DRF636 Coil Weight Capacity 20,000 lb

Max Stock Width 36"
Max Stock Thickness 0.250"
Minimum Expansion Range 19.5"
Maximum Expansion Range 24.5"
Coil Outer Diameter Capacity 72"
Pull Off Coil Reel
Traveling Coil Load Car
Three Leaf Mandrel
Coil Width Scales Recessed into Mandrel Leafs
Heavy Duty Hydraulic Wedge Type Expansion
Air Drag Brakes for Adjustable Tensioning
Air Fail Safe Brake
Hydraulic Threading Drive for Jog Forward and Reverse
Hand Held Pendant for Jogging Functions
Clock Spring Safety Guard
Powered Lift and Travel
Hydraulic Hold Up Arm
Powered Straightener PS500-7-36-HD
Entry and Exit Pinch Rolls 6.4" Diameter
Hydraulic Operated Entry Upper Pinch Roll Adjustment
Air Operated Exit Upper Pinch Roll Adjustment
Seven Straightening Rolls 5" Diameter
Motorized Upper Roll Adjustments via 15 Ton Screw Jacks
Dual Flights of Backup Rollers on Upper and Lower Straightening Rolls
Platen Type Coil End Debender (Hydraulic)
Hold Down, Peeler Threading Station (PTH)
Coil Hold Down Arm with Motorized End Wheel (Hydraulic)
Stock Peeler Table (Hydraulic)
Peeler Blade (Pneumatic)
Assist Roll for Threading (Hydraulic)
Dual Roll Stock Width Edge Guides
Individual or Simultaneous Stock Guide Adjustments
Scales for Edge Guide Positioning
Automatic Lubrication System
Operator’s Control Station
Hand Held Pendant for Jog Forward and Reverse
Auto / Run Cycle
Laser Loop Control with Remote Stand
Exit Thread Table ETT-36
Bomb Bay Door Design
