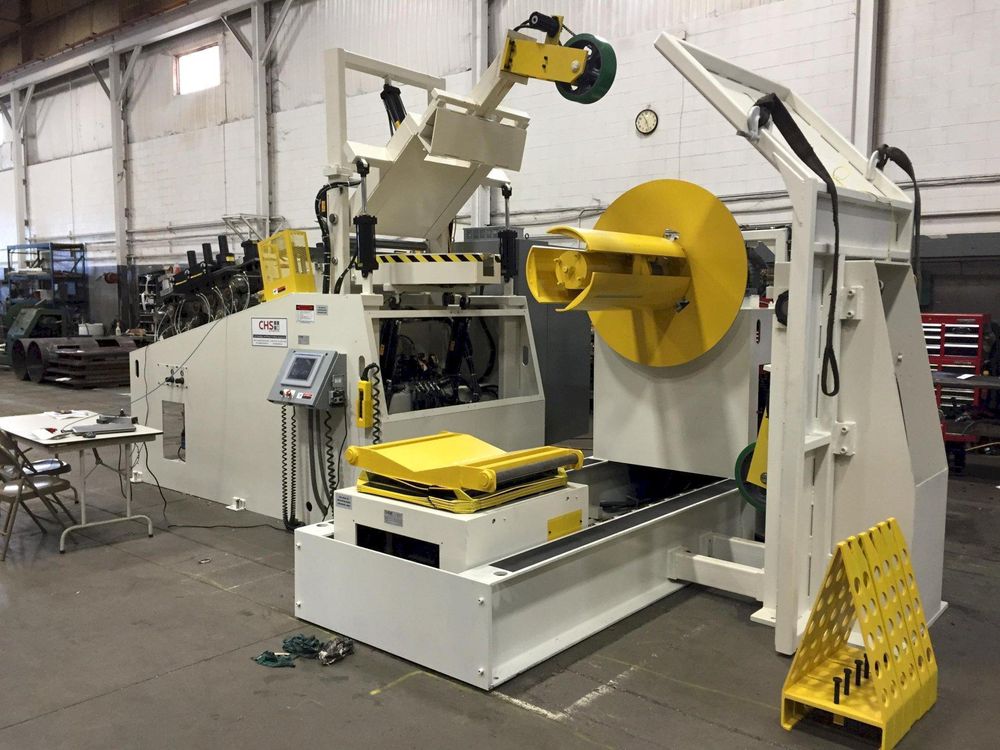

CHS R200 / PS500 / DRF636 Coil Feed Line Coil weight capacity: 20,000 lbs

CHS R200 / PS500 / DRF636 Coil Feed Line
Year: 2015

Coil weight capacity: 20,000 lbs
Stock width capacity: 36"
Max stock thickness at full width: .315"
Max stock thickness at 18" width: .393"
Expansion range: 19.5"–24.5"
Coil outside diameter capacity: 72"
Pull‑off coil reel and traveling load car model R200‑36 / LC‑200
Three‑leaf mandrel with recessed width scales
Heavy‑duty hydraulic wedge expansion
Air drag brakes for tension control
Air fail‑safe brake
Hydraulic jog drive (forward & reverse)
Hand‑held pendant for jogging
Clock‑spring safety guard
Powered traveling coil load car
Hydraulic hold‑up arm
Powered straightener PS500‑7‑36‑HD with entry/exit pinch rolls (6.4")
Hydraulic entry pinch roll adjustment
Air‑operated exit pinch roll adjustment
Seven straightening rolls (5" diameter)
Motorized upper roll adjust via 15‑ton screw jacks
Dual back‑up roller flights on rolls
Platen‑type hydraulic coil end debender
Hold‑down peeler threading station
Hydraulic coil hold‑down arm with motorized wheel
Hydraulic stock peeler table
Pneumatic peeler blade
Hydraulic assist roll for threading
Dual roll edge guides with individual/simultaneous adjustment
Scales for edge guide positioning
Automatic lubrication system
Operator control station + handheld jog pendant
Auto/Run cycle control
Laser loop control with remote stand
Exit thread table model ETT‑36 with bomb‑bay door design
Optional servo roll feed DRF‑636 with 6" diameter chrome finish rolls
Air‑operated servo feed roll adjustment
Cascade entry support section
Stock width edge guides
Centralized lubrication points
Solenoid‑controlled pilot release
Air pressure regulator
Adjustable pass‑line cabinet‑mounted console
AC servo feed drive with job memory, batch counting, micro adjustments
Remote pendant jog control
Fused disconnect, 480 V power
