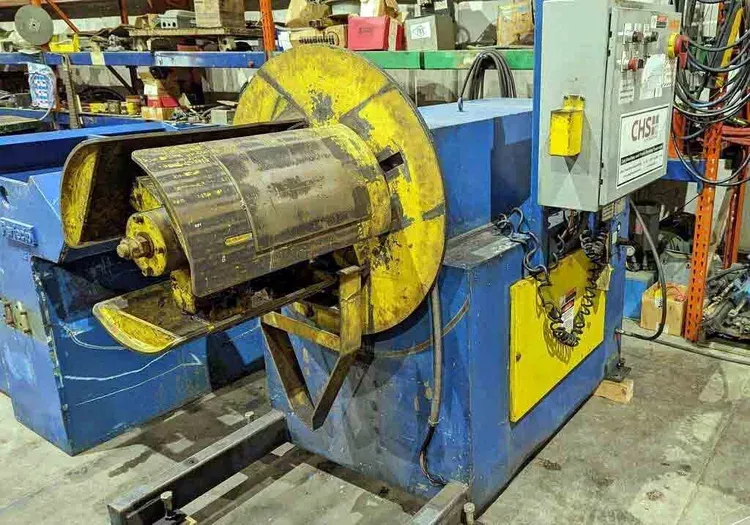

CHS R60-18 Max Coil Weight: 6,000 lb

Ref : 2727716-3-MT

Condition : Used

Manufacturer : -

Model : CHS R60-18

Capacity : Max Coil Weight: 6,000 lb

Year(s) : 2011

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

CHS R60-18
2011

Max Coil Width: 18 in
Coil Outer Diameter: 60 in
Coil Inner Diameter Range: 20" - 24"
Dimensions: 89" L x 52" W x 69" H
Hydraulic Expansion
3 Leaf Mandrel
Wedge Type Expansion
Eaton Airflex Air Brake
Hydraulic Motor Threading Drive with Clutch
36" Diameter Back Plate
Self-Contained Hydraulic Power Unit
3 HP AC Motor
Passline Height: 41.5" from Floor to Center of Mandrel
Voltage: 480V
