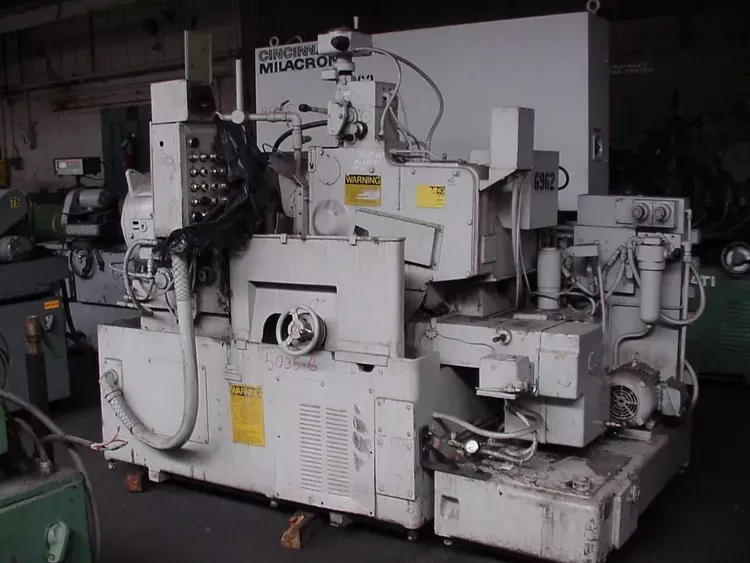

Cincinnati 1 MICROCENTRIC

Work diameter range (full wheel): 4"
Rapid advance movement min: 0.187"
Rapid advance movement max: 1.50"
Infeed movement dual rate: 0.06"
Infeed movement triple rate: 0.250"
Infeed rate adjustment: 0.005" to 1"
Headstock movement parallel to swivel plate: 5"
Vertical movement on eccentrically mounted rollers: 0.050"
Longitudinal movement of headstock through cross slide screw: 13.12"
Sub slide movement perpendicular to cross slide movement: 4.88"
Grinding wheel size: 20" diameter x 3" wide x 12" hole
Grinding wheel motor power: 20 HP (14.9 kW)
Grinding wheel motor speed: 1500 or 1800 rpm
Headstock motor power: 1.5 HP (1.1 kW)
Headstock motor speed: 750 or 900 rpm
Hydraulic pump motor power: 3 HP (2.2 kW)
Cutting fluid pump motor power: 0.25 HP (0.2 kW)
Cutting fluid pump capacity: 30 GPM
Distance floor to grinding wheel centerline: 47.38"
Floor space with cutting fluid tank: 105" x 81.75"
Net weight: 12,200 lbs
Domestic shipping weight: 12,150 lbs
Export shipping weight: 13,350 lbs
Export case size: 114" x 84" x 84"
Profile above wheel truing
Jog work head
Double indexing work head
Separate push button station
Grind cycle timer
