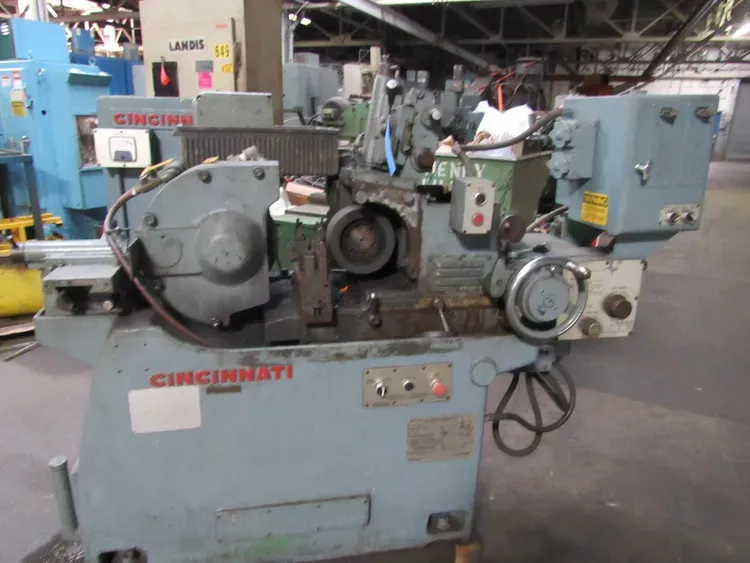

Cincinnati 107-4

Capacity infeed workrest 0 to 1 1/2 dia
Capacity thru feed workrest 0 to 1 1/2 dia
Grinding wheel diameter max 16 in min 12 in
Grinding wheel width max 4 in
Grinding wheel hole 10 in dia
Regulating wheel diameter max 9 in min 7 in
Regulating wheel width max 4 in
Regulating wheel hole 4 in dia
Regulating wheel recessed both sides 5 1/2 in dia x 5/8 in
Grinding wheel spindle high grade alloy steel heat treated ground super finished
Grinding wheel spindle filmatic bearings self adjusting plain thrust bearing center
Grinding wheel spindle automatic circulating lubrication under pressure
Regulating wheel spindle high grade alloy steel heat treated ground super finished
Regulating wheel spindle two segment bronze lined bearing anti-friction ball thrust bearing
Regulating wheel spindle automatic lubrication
Regulating wheel speeds infinite
Regulating wheel speed range 22 to 300 RPM
Grinding wheel drive motor 7 1/2 HP
Grinding wheel drive transmission 3 V-belts
Regulating wheel drive motor 3/4 HP
Regulating wheel drive transmission wide V-belt
Regulating wheel speed changes variable pitch sheaves
Cutting fluid pump 21 gallons capacity
Cutting fluid tank 40 gallons capacity
Wheel truing independent devices for each wheel dovetail slides
Hydraulic contour truing grinding wheel
Hydraulic contour truing regulating wheel
Floor space 63 x 61 1/8 in
Weight 4560 lbs
