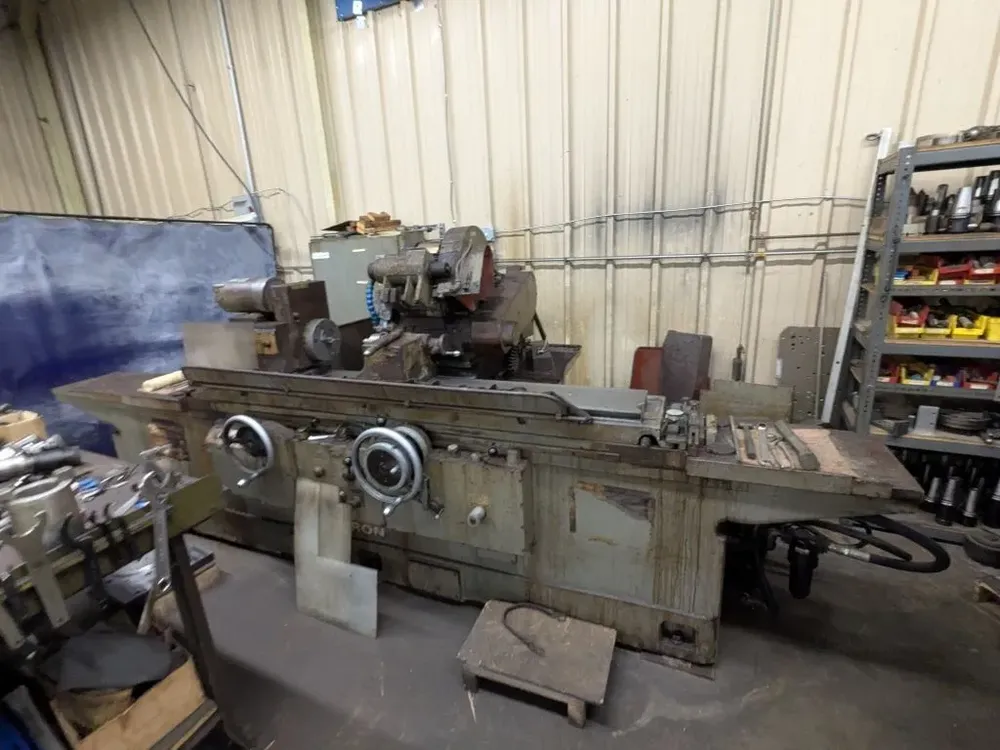

Cincinnati 12 X 48

Swing: 12.938"
Distance Between Centers: 48"
Maximum Grinding Diameter with Full Size Wheel: 14"
Grinding Wheel Size: 14" x 1.5" x 5"
Grinding Wheel Diameter: 14"
Wheel Head Motor: 7.5 HP
Wheel Head Speed: 1730 RPM
Workhead Power: 0.75 HP
Workhead Speed: 1730 RPM
Variable Work Rotation Speeds
Table Traverse Speed: 3 - 240 IPM
Automatic Infeed at Table Reversal
Diameter Reduction Low Range: .0002" - .005"
Diameter Reduction High Range: .005" - .0125"
Cross Feed Handwheel Movement Low Range: .050"
Cross Feed Handwheel Movement High Range: .250"
Swivel Table Toward Wheel Head: 10°
Swivel Table Away from Wheel Head: 3°
Lower Swivel Range Right & Left: 90°
Upper Swivel Range Right & Left: 30°
Headstock Swivel Toward Wheel Head: 90°
Headstock Swivel Away from Wheel Head: 30°
Distance from Floor to Centers: 42.25"
Minimum Table Reversal Movement: 3/32"
Table Reversal Accuracy: .004"
Right and Left Tarry: 0 - 5 Seconds
Rapid Hand Table Traverse per Revolution: 15/16"
Slow Hand Table Traverse per Revolution: 0.2"
Hydraulic Pump Motor: 1 HP
Cutting Fluid Pump Motor: 1/4 HP

Lever Operated Tailstock
Truing Attachment
Left and Right Tarry at End of Table Stroke
Traverse
Variable Speed Headstock
Tailstock Dresser
Internal Diameter Attachment
Standalone Electrical
Pickfeed
