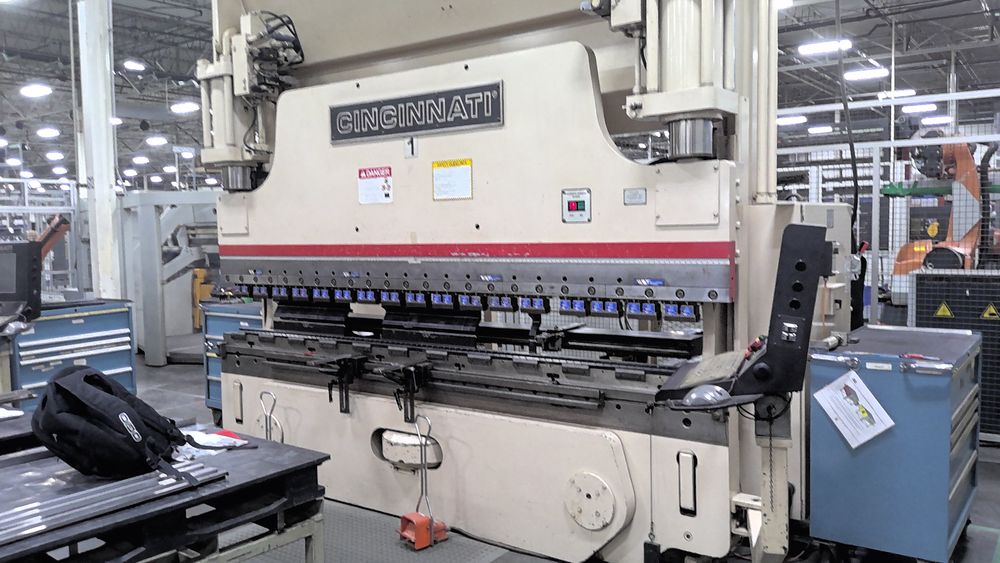

Cincinnati 1750AF10+ AUTOFORM PLUS 175 tons

Press force 175 tons
Overall bed and ram length 12 ft
Distance between housings 10 ft 6.5 in
Stroke 16 in
Extended stroke 6 in
Open height 17 in
Closed height 7 in
Throat clearance 12 in
Approach speed 260 in/min
Forming speed 1–65 in/min
Return speed 1–290 in/min
Bed top width 5.5 in
CNC control Cincinnati Autoform PC HMI
Industrial PC-based control
15.1 in TFT touchscreen display
Tool library
CAD design software
Dynamic thickness compensation
Adaptive control mode
Autocrown system
Backgauge axes X1
Backgauge axes X2
Backgauge axis R
Backgauge axes Z1
Backgauge axes Z2
Backgauge stroke 24 in
Ram die clamps on 6 in centers
Two programmable footswitches
Precision ram leveling
Dual linear glass scale encoders
Off-load center compensation
Variable displacement pump
Variable volume load-sensing pump
Servo hydraulic system
Three-position electric foot switch
Presence sensing interface
Palm button station
Manuals included
Interlocked construction
Main motor power 25 HP
Electrical supply 460 V / 3 phase / 60 Hz
Machine weight approx. 35,000 lb
Overall length 177 in
Overall width 72 in
Overall height 135 in
