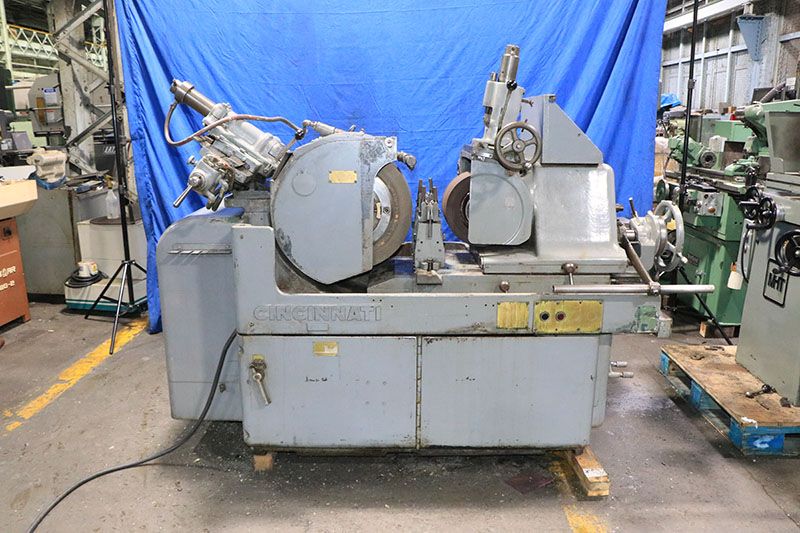

Cincinnati 2 OM

CINCINNATI 2 OM

Diameter capacity 1/16" to 3"
Grinding wheel diameter minimum 16"
Grinding wheel diameter maximum 20"
Grinding wheel hole diameter 12"
Grinding wheel motor 15 HP
Regulating wheel diameter minimum 9.5"
Regulating wheel diameter maximum 12"
Regulating wheel width maximum 8"
Regulating wheel hole diameter 5"
Regulating wheel speed range 12 to 300 RPM
Regulating wheel motor 1.5 HP
Machine weight 8,000 lbs
Floor space 53" x 86"
Hydraulic dresser for grinding wheel
Manual dresser for regulating wheel
Work rest with blade
External coolant system with tank and pump
Variable speed drive for regulating wheel
Swivel-type regulating wheel unit with taper adjustment
Filamatic grinding wheel spindle bearings
Grinding wheel motor 15 HP 3/60/220–440 volts
Machine wired for 440 volts
Rebuilt spindle by GCH job no. 12-558
