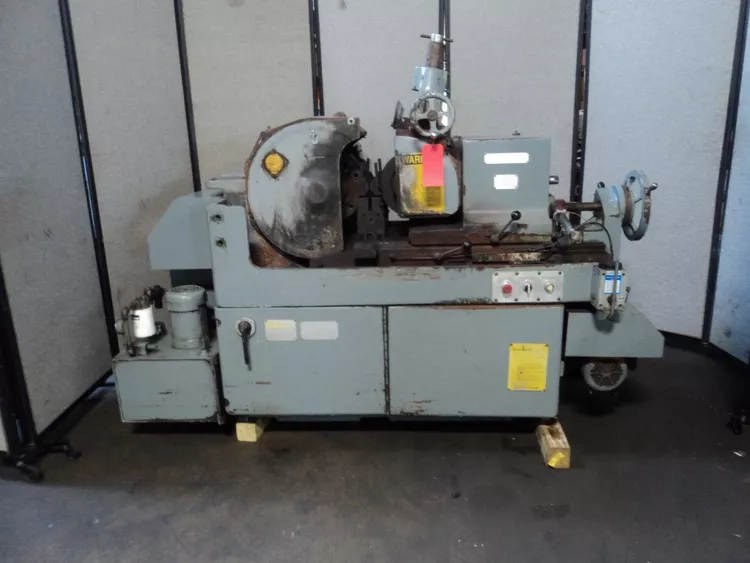

Cincinnati 2 OMV

Work diameter capacity 0 to 4.5 inches
Work diameter using standard work rest 0.062 to 3 inches
Grinding wheel size maximum 20" diameter x 12" hole x up to 8" wide
Grinding wheel size minimum 15" diameter
Grinding wheel surface speed new wheel 6500 SFPM
Regulating wheel size maximum 12" diameter x 5" hole x up to 8" wide
Regulating wheel size minimum 9" diameter
Regulating wheel speed infinitely variable 12 to 300 RPM
Standard drive motor for grinding wheel 15 HP
Coolant tank capacity (optional) 50 gallons
Coolant pump capacity (optional) 30 gallons per minute
Floor space 88" L-R x 58" F-B x 62" Height
Approximate weight 8500 lbs

Rugged cast iron construction for dampening effect
Grinding wheel spindle mounted directly to machine bed for rigidity
Automatic lubrication to grinding and regulating wheel spindles
Sturdy swivel plate supporting double slide infeed system for fast taper correction
Infinitely variable hydrostatic drive for regulating wheel spindle
Manual slide positioning with T-handle and/or hand wheel actuated infeed screw
Hydraulic power for regulating wheel optional
Machine documentation included (operator and parts manual)
230 or 460 volt, 3 phase, 60 Hz electrics
