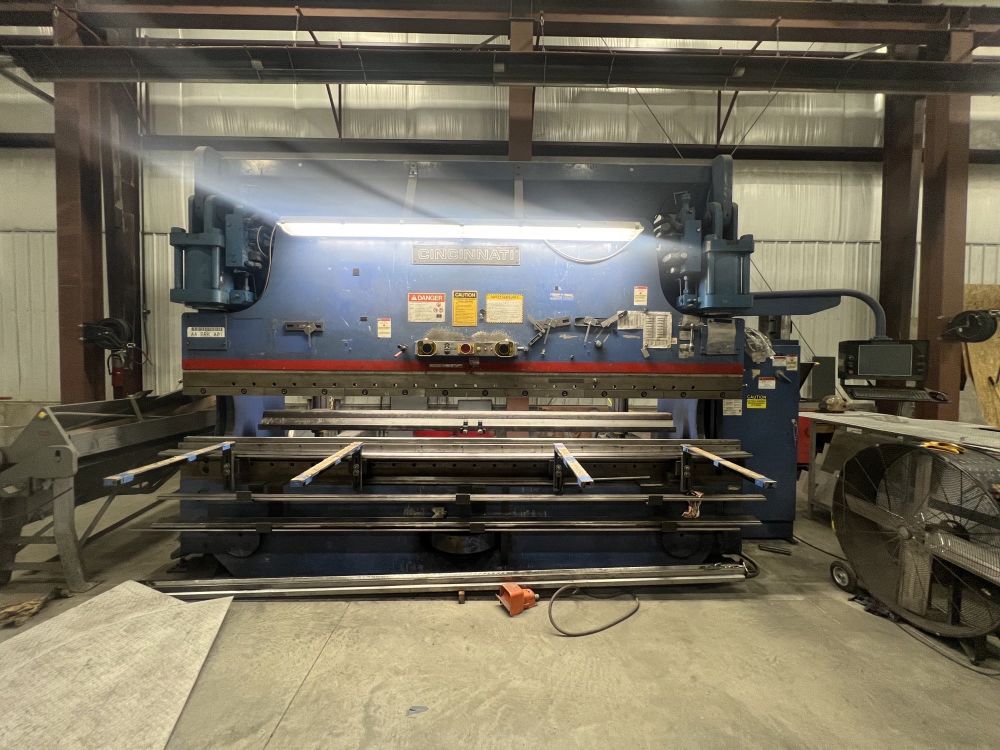

Cincinnati 230 AF12 230 tons

Press capacity 230 tons
Bed & ram length 14’
Distance between housings 12’ 6.5”
Stroke 10”
Open height 17”
Closed height 7”
Throat clearance 12”
Approach speed 230 in/min
Forming speed 1–45 in/min
Return speed 1–250 in/min
Width at top of bed 5.5”
Main motor 25 HP, 460/3/60
CNC Human Machine Interface
Industrial PC based control
15.1” TFT touchscreen display
Tool library
CAD design software
Dynamic thickness compensation
Adaptive control mode
2-axis 24” plate gauge (X & R)
AutoCrown deflection compensation
Precision ram leveling with dual linear glass scale encoders
Off load center compensation
Variable volume load sensing pump and servo hydraulic system
3-position electric foot switch
Presence sensing interface
Palm button station
Manuals included
Interlocked construction
Approximate weight 48,000 lbs
Approximate dimensions 168” L x 72” W x 127” H
