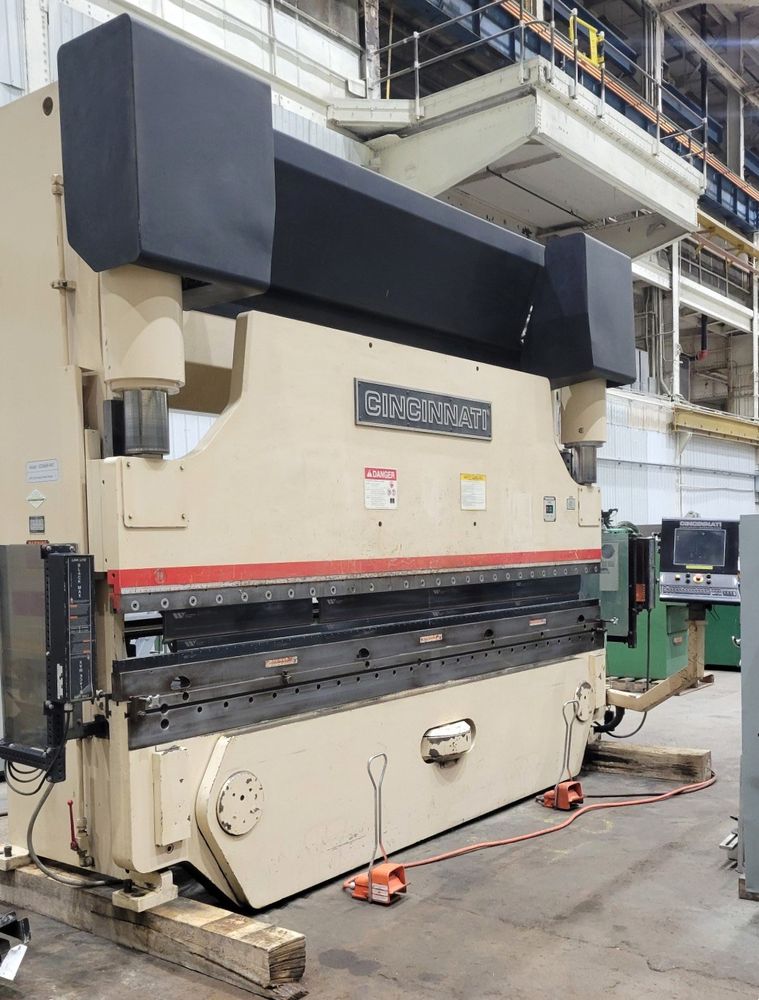

Cincinnati 230 MX10 Maxform 230 tons

Capacity 230 tons
Overall bed and ram length 14'
Distance between housings 12' 6.5"
Stroke 10"
Open height 17"
Closed height 7"
Throat clearance 8"
Approach speed 600 in/min
Forming speed 1-35 in/min
Return speed 1-430 in/min
Width at top of bed 5.5"
Main motor 25 HP 460/3/60
Cincinnati Gen 5 Human Machine Interface
Industrial PC based control
15.1" TFT touchscreen display
Tool library
CAD design software
Dynamic thickness compensation
Adaptive control mode
5 Axis backgauge (X1, X2, R, Z1, Z2)
Autocrown deflection compensation
Link Black Max safety curtains
Precision ram leveling with dual linear glass scale encoders
Off load center compensation
Variable volume load sensing pump and servo hydraulic system
3-position electric foot switch
Presence sensing interface
Palm button station
Manuals
Interlocked construction
