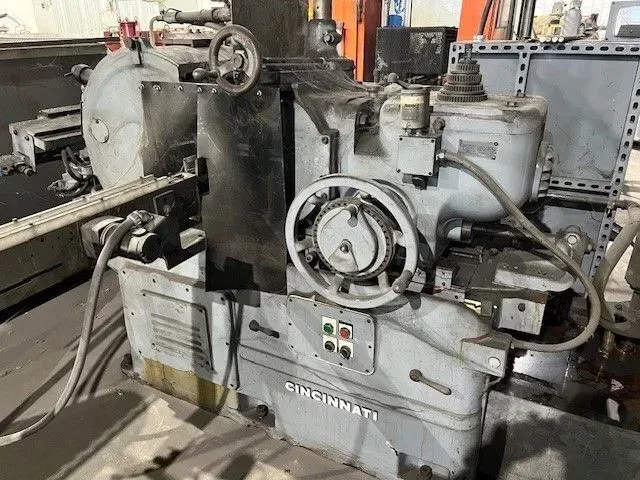

Cincinnati 3 EA

Grinding wheel diameter 24 in
Grinding wheel motor 30 HP
Regulating wheel diameter 14 in
Regulating wheel motor 2 HP
Dimensions approx. 96.25 x 62 in
Machine weight 11,500 lbs

Capacity (thru-feed) 1/2 to 3 in diameter
Capacity (heavy duty thru-feed) 2 to 6 in diameter
Minimum work diameter (special rest) 1/4 in
Capacity (infeed) 1/2 to 6 in diameter

Grinding wheel spindle front/rear bearing 4 3/4 in dia x 7 1/2 in long
Regulating wheel spindle front bearing 4 in dia x 5 1/2 in long
Regulating wheel spindle rear bearing 2 5/8 in dia x 3 3/4 in long

Grinding wheel size 24 x 12 x 10 in
Regulating wheel size 14 x 5 x 10 in

Hydraulic contour truing on grinding wheel
Hand screw truing on regulating wheel
Automatic spindle lubrication
Hydraulic table traverse
Coolant tank capacity 76 gallons
Coolant pump capacity 25 gallons
Attached electrical panel
Workrest 10 in wide thru-feed
Reversing regulating wheel switch
Gear set included
