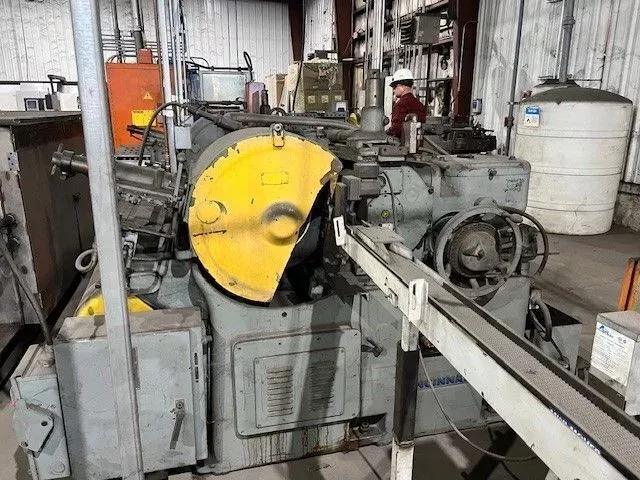

Cincinnati 3 EA

Grinding wheel diameter 24 in
Grinding wheel face 8 in
Grinding wheel hole 12 in
Grinding wheel motor 30 HP

Regulating wheel diameter 14 in
Regulating wheel face 8 in
Regulating wheel hole 5 in
Regulating wheel motor 2 HP

Capacity (thru-feed) 1/2 to 3 in diameter
Capacity (heavy duty thru-feed) 2 to 6 in diameter
Capacity (infeed) 1/2 to 6 in diameter
Minimum work diameter 1/4 in (special work rest)

Grinding wheel spindle front/rear bearing 4 3/4 x 7 1/2 in
Regulating wheel spindle front bearing 4 x 5 1/2 in
Regulating wheel spindle rear bearing 2 5/8 x 3 3/4 in

Hydraulic contour truing (grinding wheel)
Hydraulic truing (regulating wheel, non-profile)
Automatic spindle lubrication
Multiple V-belt drive (grinding wheel)
Worm and gear drive (regulating wheel)

Coolant tank capacity 76 gallons
Coolant pump capacity 25 gallons

Floor space approx. 96 1/4 x 62 in
Distance floor to wheel center 43 1/2 in
Machine weight 11,500 lbs

Equipped with:
8 in thru-feed workrest with blades and guides
Attached electrical panel
Coolant system
