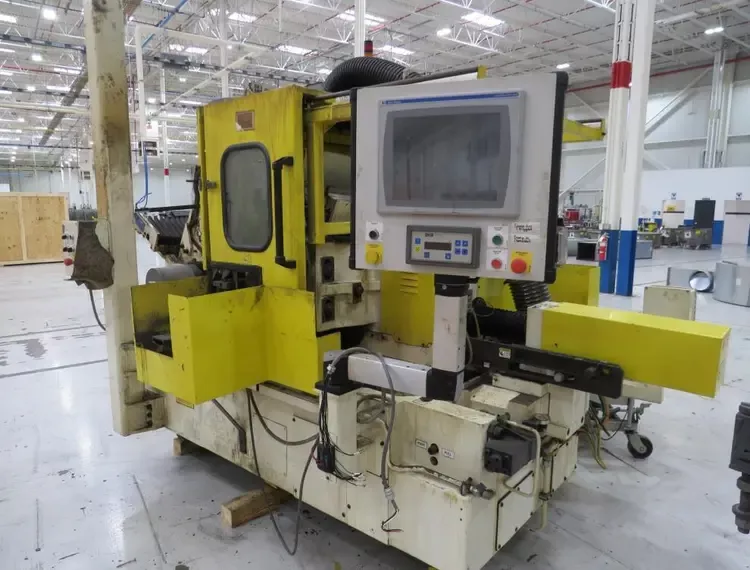

Cincinnati 340-20

Capacity 6"
Grinding wheel dia. 24"
Grinding wheel power 40 hp
Regulating wheel dia. 14"
Regulating wheel RPM 300 RPM
Dimensions 95 1/4" x 140 3/8"
Weight 25000 lbs
Standard thru feed and infeed work rests 1/2"–3" dia.
Maximum work diameter 6"
Grinding wheel hole 12"
Grinding wheel width 20"
Grinding wheel minimum diameter 16"
Regulating wheel hole 6"
Regulating wheel width 20"
Regulating wheel maximum diameter 14"
Regulating wheel minimum diameter 10 1/4"
Regulating wheel speeds 0–300 RPM servo transmission
Grinding wheel drive enclosed motor 40 hp constant speed 3-phase AC
Power transmission 8 V belts
Cutting fluid pump capacity 30 GPM
Cutting fluid tank capacity 75 gallons
Regulating wheel slide adjustment graduated in 0.00005"
Thru feed push button compensation fine and coarse feed
Independent truing units for each wheel
Grinding wheel dresser with ball screw and servo driven traverse and diamond advance
Regulating wheel dresser hydraulic

Servo comp / AC motor grinding wheel truing
Manual comp / AC motor regulating wheel truing
Swivel cam bracket
Servo regulating drive
Adjustable GCH swivel
GCH slide locks
Stand alone hydraulic unit
Coolant tank & pump
GCH partial enclosure
Allen-Bradley Panelview 1500 Plus
Allen-Bradley controls
Workrest
SBS balancer
Jib crane
Graco lube unit
