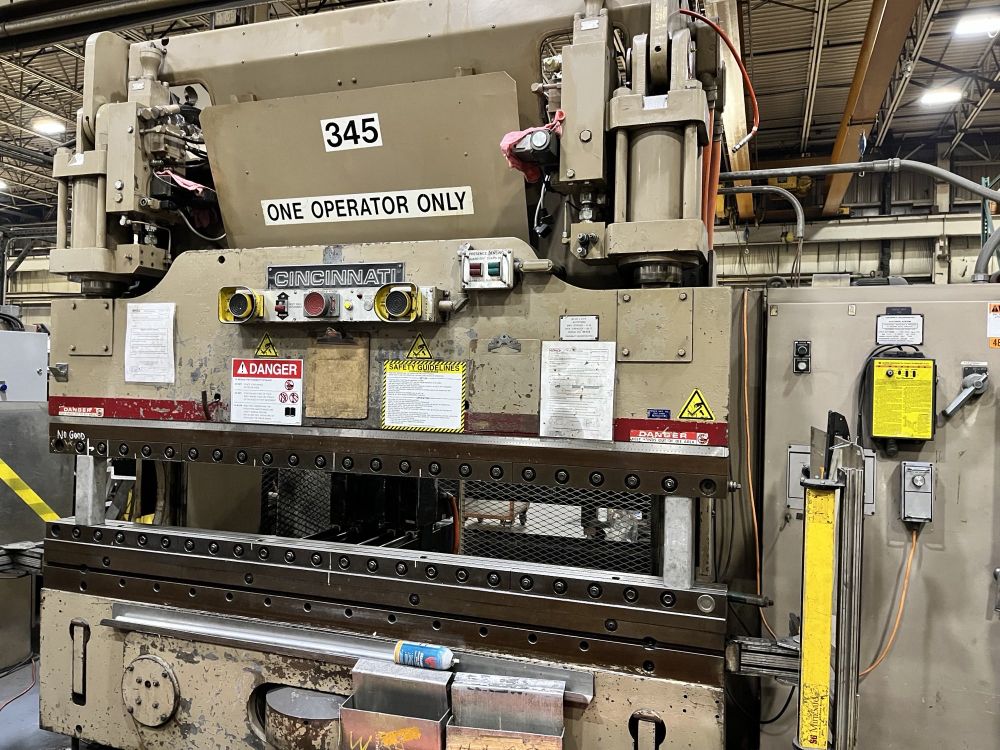

Cincinnati 90AF AUTOFORM 90 tons

Press Force: 90 tons
Bed and Ram Length: 8 ft
Distance Between Housings: 66 1/4 in
Stroke: 8 in
Open Height: 15 in
Closed Height: 7 in
Throat Clearance: 8 in
Approach Speed: 230 IPM
Forming Speed: 1–45 IPM
Return Speed: 250 IPM
Floor to Top of Bed: 36 in
Back Gauge X-Axis Speed: 1200 IPM
Top of Bed Width: 5 1/2 in
Main Motor: 230/460 V, 3 Ph, 60 Hz

Updated Autoform PC CNC Control
24 in 6-Axis Heavy Duty Programmable Back Gauge (X1, X2, R1, R2, Z1, Z2)
Autocrown Deflection Compensation
Power Clamp Upper Tool Holder
Power Clamp Lower Tool Holder
Precision Ram Leveling
Dual Linear Glass Scale Encoders
Off-Center Load Compensation
Variable Volume Load Sensing Pump
Servo Hydraulic System
Full Tonnage Throughout Stroke
Electric Foot Switch
Palm Button Station
Manuals
Interlocked Construction
Clevis-Mounted Self-Aligning Cylinders
Dual Strain Gauges for Tonnage Mode
Overall Dimensions: 110 × 70 × 114 in
Weight: 19,400 lb
