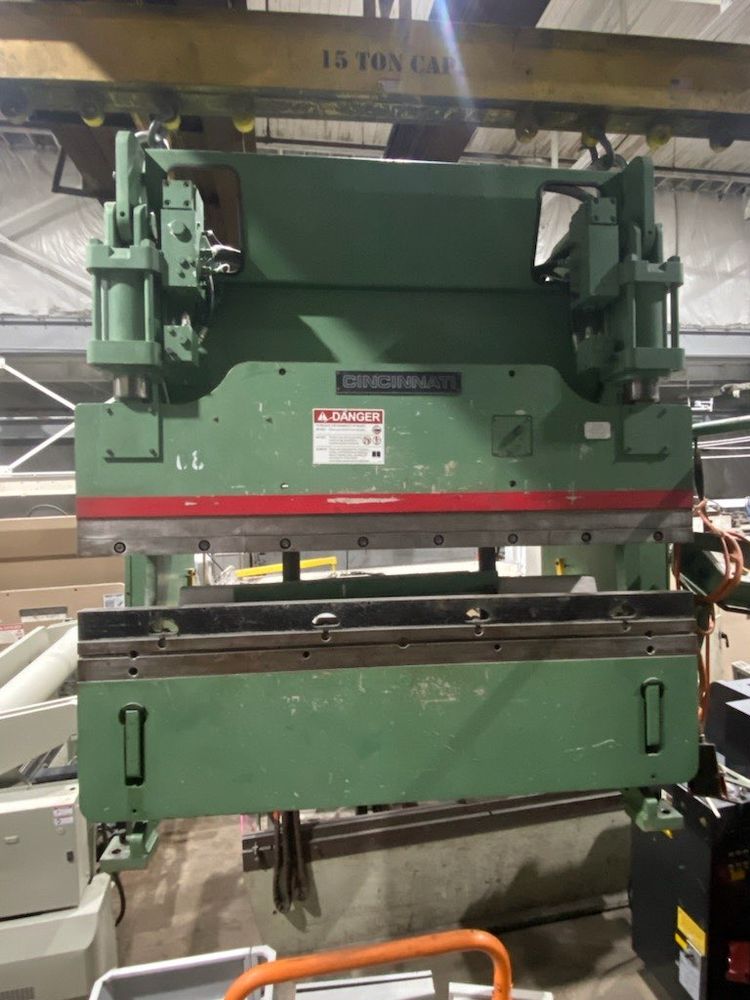

Cincinnati 90CBII 90 Ton

Press force: 90 Ton
Overall bed length: 8'

Distance between housings: 8’6 3/4”

Stroke: 8"
Open height: 15"
Closed height: 7"
Throat clearance: 7"

Speed (approach): 260 in/min
Speed (form): 10 - 20 - 80 in/min
Speed (return): 280 in/min

Bed top width: 3 1/2"
Motor power: 15 HP

Weight: 13,300 lb
Overall dimensions: 8’6.5” x 50” x 110”

Cincinnati CBII control
Cincinnati CNC back gauge
Transducer positioned feedback
Narrow filler block
Light curtains
Electric foot switch
Pedestal palm button station
Interlocked construction
Clevis mounted self-aligning cylinders
