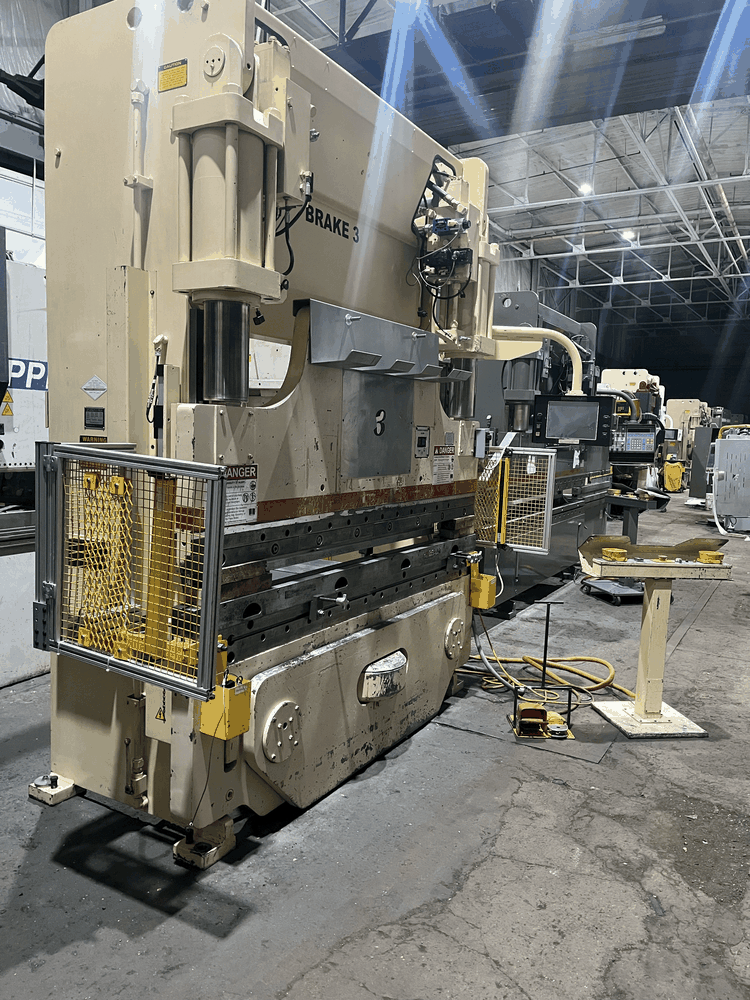

Cincinnati Autoform 230AF 135 T

Tonnage capacity: 135 T
Overall bed & ram length: 8'
Distance between housings: 6'6.75"
Stroke: 14" (6" extended)
Open height: 21"
Closed height: 7"
Throat clearance: 7"
Approach speed: 290 IPM
Forming speed: 80 IPM
Return speed: 270 IPM
Back gauge X-axis speed: 1200 IPM
Width at top of bed: 4.5"
Main motor power: 25 hp
Control: Cincinnati PC Mounted Multi-Axis Control
Programmable forming speeds
Programmable ram opening
Programmable reversal
Programmable tonnage
Control diagnostics
Tool library
Back gauge: 24" 2-axis CNC programmable with manual R axis
Safety: ISB Merlin Light Barriers
Precision ram leveling with dual linear glass scale encoders
Autocrown
Off-load center compensation
Variable volume load sensing pump and servo hydraulic system
Programmable electric foot switch
Pedestal palm button station
Manuals included
Interlocked construction
Clevis mounted self-aligning cylinders
Bed & ram machined & drilled for 5 ¾” angles (not provided)
Overall dimensions: 133" L x 58" W x 122" H
Approximate weight: 20,800 lbs
