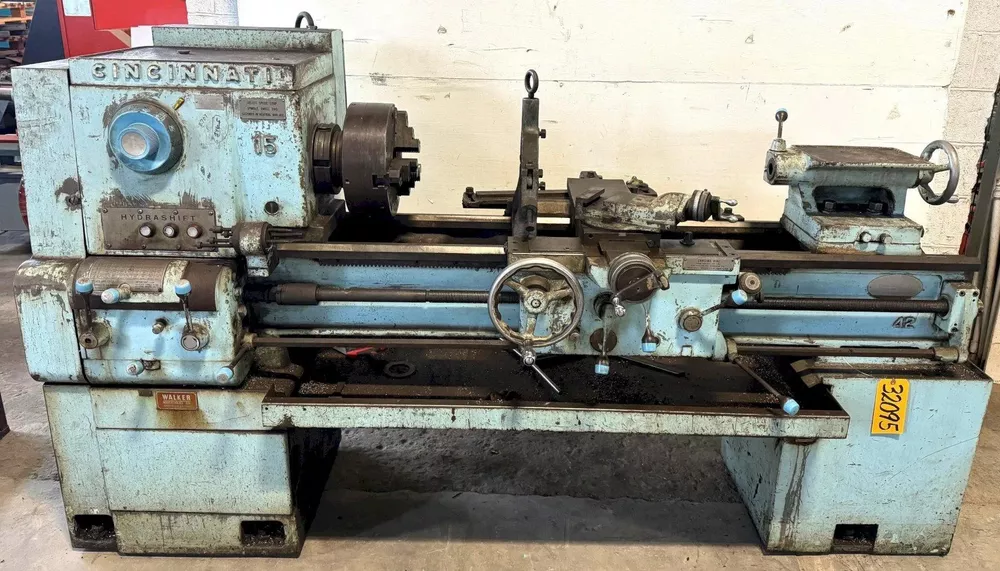

Cincinnati Engine Lathe 1470 rpm 15

Ref : 2776703-3-MT

Condition : Used

Manufacturer : Cincinnati

Type : Engine Lathe

Spindle Speed : 1470 rpm

Model : 15

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing over bed 16-7/8"
Swing over cross slide 9-5/8"
Distance between centers 48"
12 spindle speeds
37–1470 rpm
Spindle nose L-1
Spindle hole 1-3/4"
48 thread and feed changes
Thread range 1-1/2 to 92 TPI
Feed range .0019" to .1215"
Cross slide travel 12"
Top slide travel 3-1/4"
Tailstock spindle travel 5"
Tailstock spindle diameter 2-1/4"
5 HP motor
12" 3-jaw chuck
Taper attachment
Steady rest
Four-position length stop
Four-position depth stop
Chip pan
Approximate weight 3200 lbs
