Cincinnati PROTON 90-30G-220-154-1100-UT Extrusion Line (032-110mm)
RUSSIA and Central Asia
The single-layer extrusion line is designed for the production of polymer pipes with a diameter of 032 to 110 mm, used for water and gas supply and sewerage.
The extrusion line, consisting of individual components, when assembled, is a single production line:
1 PROTON 90-30G-220-154-1100-UT Single Screw Extruder
2 Pipe Head PH-PO 25
3 Vacuum baths V-125/2/9 2_ V-125/1/5,8
4 Cooling bath N-125/5.8
5 Marking device MAK140 / CCRD
6 Haul-off unit P.200.3E (0201901)
7 Cut-off unit T.R.K/SY/U 25.160
8 Stacking unit ABLEGEEINHEIT 2/2
9 Gravimetric Device KTW
10 Co-extruder for applying colored strips CE-30
11 Sieve exchanger
12 Water bath calibrator kit for diameters 032-110mm
13 Tooling kit Die core with internal/external heaters for diameters 032-110mm
14 Tooling Kit Die lips with Internal/External Heaters for Diameters 032-110mm
15 Vacuum bath sealing kit
16 Set of semi-rings for vacuum and water baths
17 Accessory: Adapter C 32 - 50 _ D 63 - 110
18 Set of sealing rubbers for water baths
19 Non-functioning ConPro Gmbh SCANNER SCH-270 Masch pipe thickness gauge. nummer 2053130/120
The complete polyethylene pipe extrusion line is a technologically complete continuous cycle of extrusion, calibration, cooling, shaping, cutting and stacking of finished products, and consists of the extruder itself with an extrusion head, a calibration and cooling bath, a haul-off device, a cut-off device and a stacker.

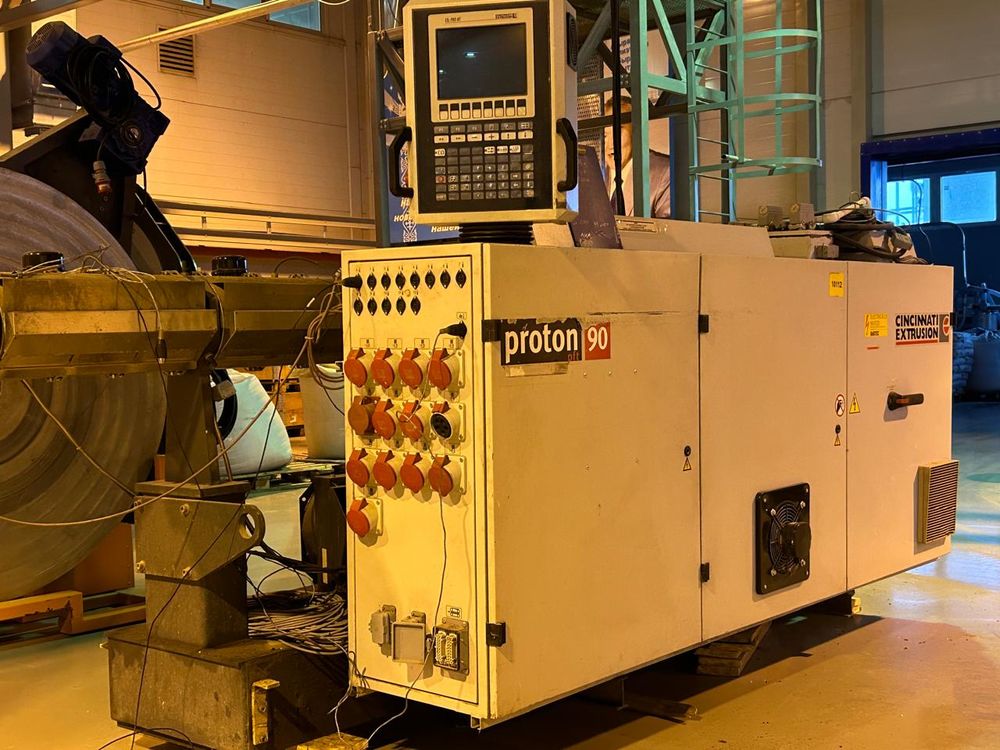

PROTON 90-30G-220-154-1100-UT single-screw extruder with microprocessor control, memory unit, control panel, display, which can be used to recall information about the actual and set values of technological parameters at any point of the technological process, equipped with a high-speed four-stage screw. A fully automatic system that operates and controls the process according to the specified parameters. Processing capacity 600 kg/h.

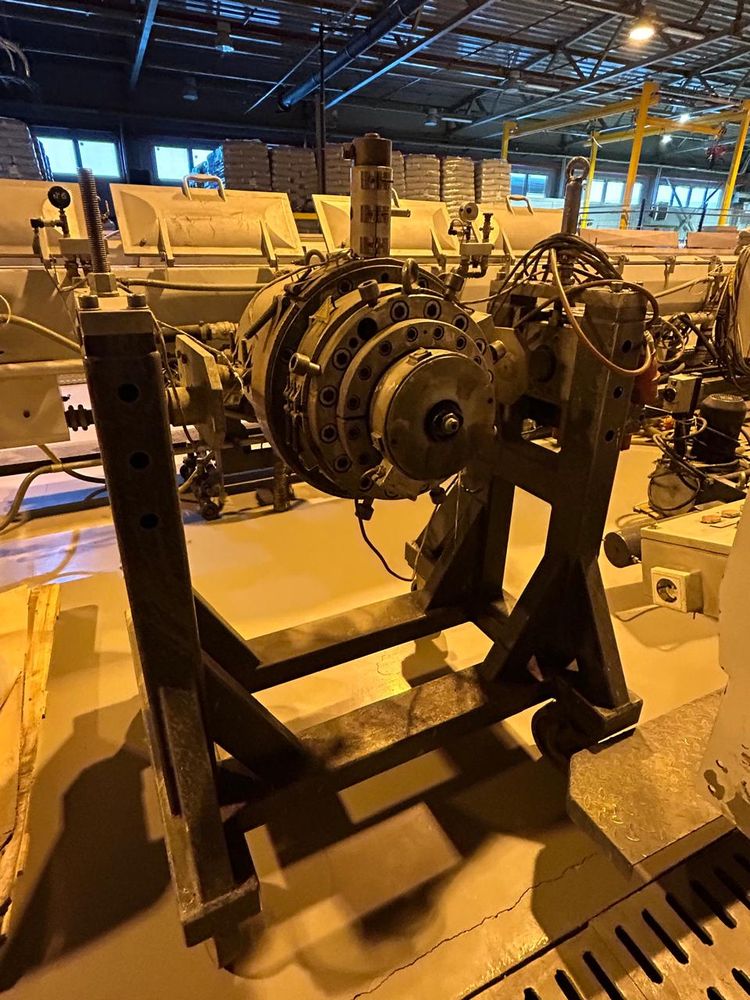

Shaping tools with replaceable die cores, calibrators, O-rings depending on the diameter of the pipe produced.
Co-extruder CE-30 designed for applying marking strips. Linked to the main control for synchronous operation.

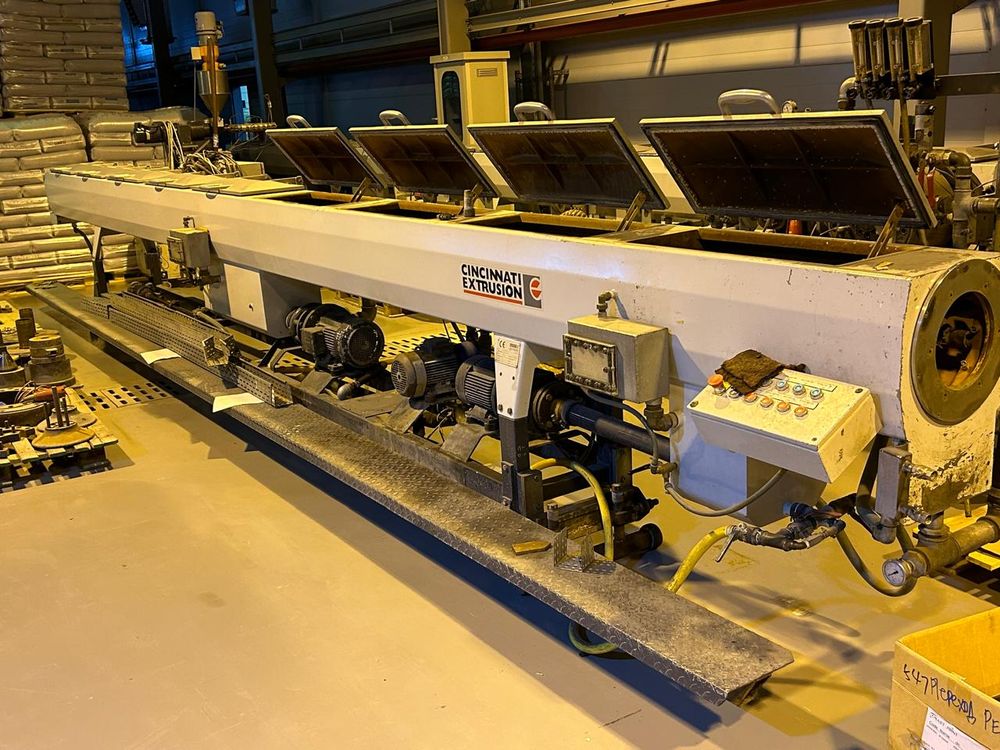

Vacuum baths V-125/2/9, 2_, V-125/1/5.8 are used for molding - calibrating the outer diameter, which is achieved by creating a vacuum between the calibration sleeve and the pipe.
Cooling baths N-125/5.8 for pre- and post-cooling of the extruded pipe.

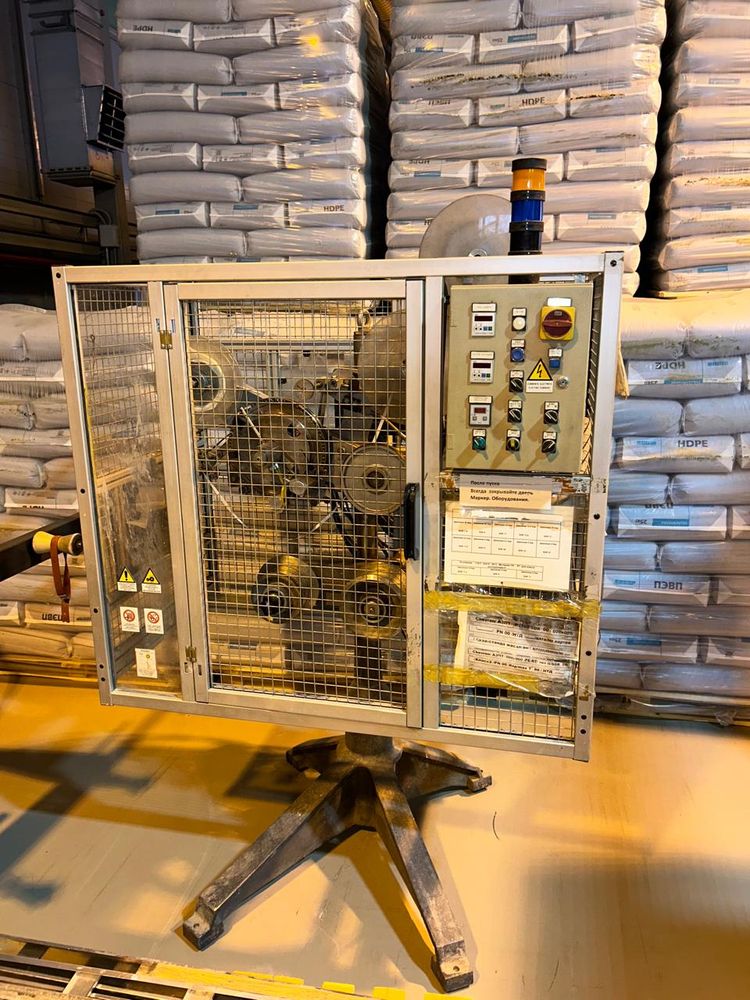

MAK140 / CCRD marking device for applying technical information on the pipe body using special ink.

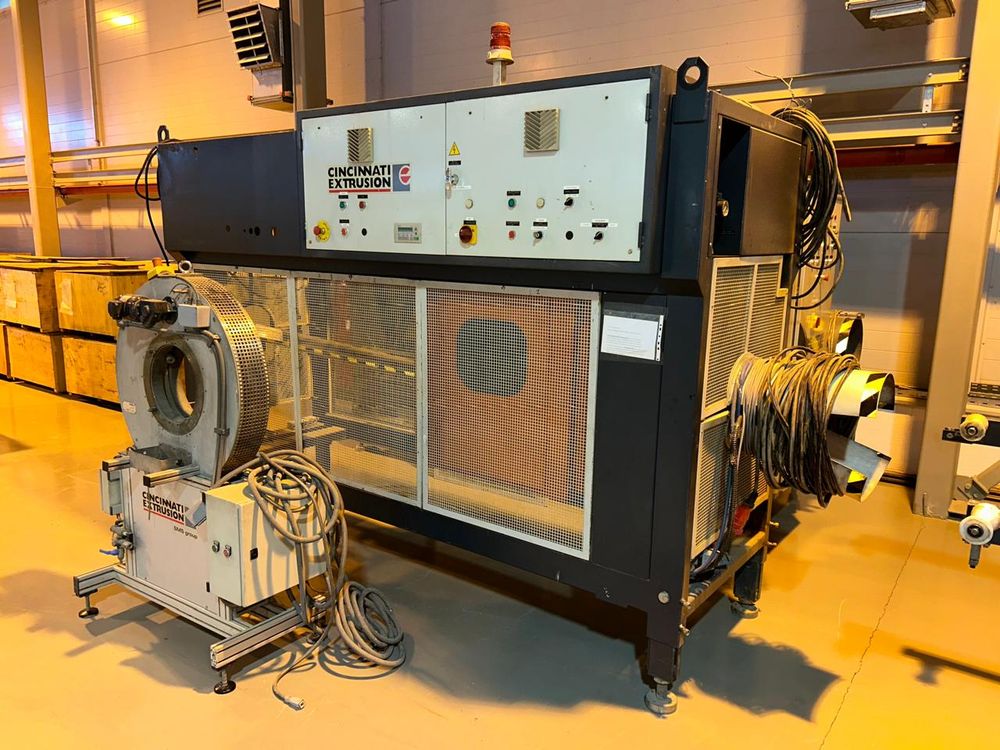

Haul-off unit P.200.3E (0201901) used to divert and feed the pipe to the cut-off unit, the gripping elements of which match the profile and diameter of the pipe. Also connected to the main control module for synchronous operation with the extruder.
Cut-off unit T.R.K/SY/U 25.160 is designed to cut pipes to specified lengths. An automatic device linked to the main control module, which allows you to cut the pipe with even ends, which eliminates the facing of the pipe, saving time during their installation.
Finished product stacking-tilting table with movable rollers. Allows to drop a pipe cut to size for further packaging at the signal of a pneumatic sensor.
