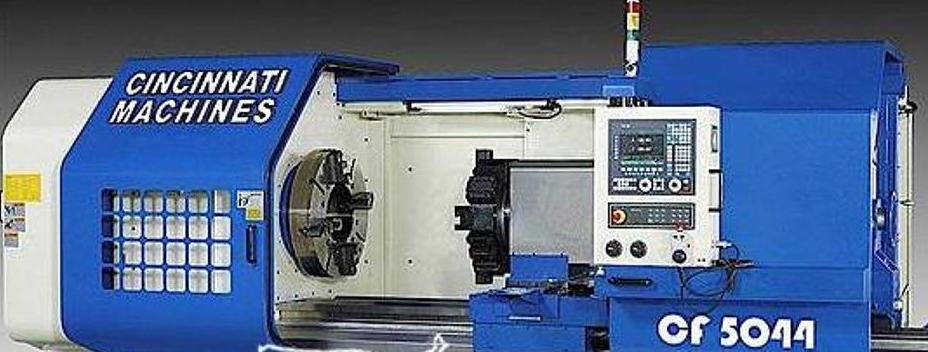

Cincinnati Fanuc 0i-I TF CNC 1000 RPM CF 5044 SERIES 2018 2 Axis

X-Axis Travel:
Z-Axis Travel: 59″
Y-Axis Travel: 20″
Rapid Traverse X-Axis: 236 IPM
Rapid Traverse Z-Axis: 315 IPM

Control: Fanuc 0i-I TF CNC
Manual Guide Shop Floor
Thread Repair Function

Swing Over Bed: 50″
Swing Over Cross Slide: 35″
Distance Between Centers: 44″
Maximum Swing: 50″
Bar Capacity: 6″
Chuck Diameter: 25″
Load Capacity in Chuck: 4,000 lbs
Load Capacity Between Centers: 6,000 lbs

Spindle Speed: 20 – 1000 RPM
Spindle Motor: 40/50 HP
Spindle Bore: 6″
Spindle Nose: A2-11
4-Range Headstock Gear Box

V-12 Automatic Turret
Manual Tailstock
Tailstock Quill: 5.7″ (rotating type)

Automatic Lubrication System
High Volume Coolant System
Rear Side Chip Conveyor
Oil Thermal Controller
Work Light
Hand-Held Manual Pulse Generator
Sleeve & 2 Centers
Heavy-Duty Single Bed Casting
Hardened Bed Ways

Machine Weight: 28,600 lbs
Machine Dimensions: 190″ x 107″ x 100″
