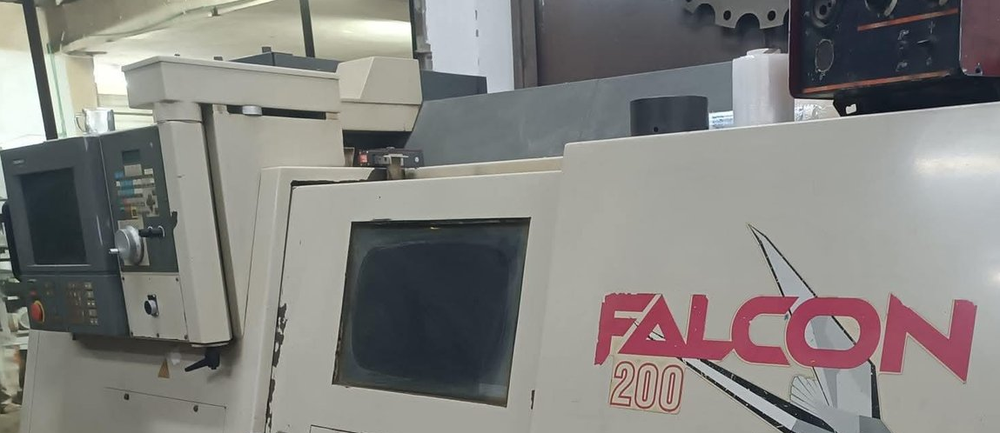

Cincinnati Milacron 40–4,500 RPM Falcon 200

Machine Type CNC Lathe
Max Work Capacity:
Swing Over Bed: 530 mm
Max Turning Dia: 360 mm
Turning Length: 400 mm

Weight 3,200 kg
Dimensions 2,800 x 1,400 x 2,000 mm
Automation Features Programmable tailstock, hydraulic chuck
Power Requirements 220/440V, 50/60Hz
Control System Acramatic A2100 (Touch Screen)
Additional Info:
"Spindle Bore: 50.8 mm
Chuck Diameter: 250 mm, 12-tool turret
Spindle Speed: 40–4,500 RPM
Motor Power: 15 HP
Rapid Traverse Rates: X-axis 215 mm, Z-axis 420 mm
Suitable for bar capacity up to 51 mm.
Includes programmable tailstock with MT No. 5 taper and hydraulic operation."
Status Used
