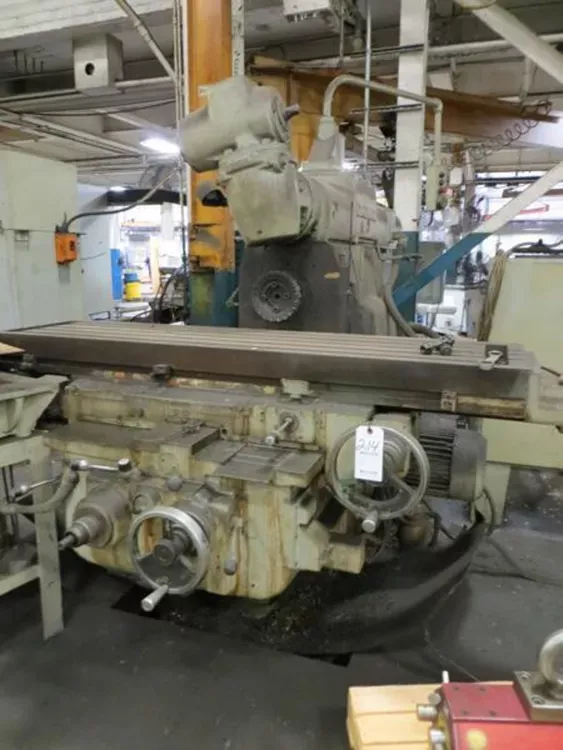

Cincinnati Milacron 320-18 Vertical 1600 RPM

Table Width: 18"
Table Length: 72"
Longitudinal Travel (X-Axis): 34"
Cross Travel (Z-Axis): 12"
Knee Vertical Travel (Y-Axis): 20"
Spindle-Center to Table Top Min: 0"
Spindle-Center to Table Top Max: 20-13/16"
Spindle Taper: #50 NSTD
Horizontal Spindle Speeds: 16–1600 RPM
Vertical Spindle Speeds: 147–1502 RPM
Longitudinal and Cross Feeds: 3/8–90 IPM
Vertical Feeds: 3/32–22.5 IPM
Rapid Traverse Longitudinal & Cross: 150 IPM
Rapid Traverse Vertical: 37-1/2 IPM
Spindle Motor: 20 HP
Knee Motor: 3 HP
Floor Space Required Width x Depth: 116" x 118"
Machine Weight: 14,000 LBS

Features / Equipment
Independent Overarm I.O.S Vertical Head
Knee Motor
Front & Rear Controls
Coolant System (Built-In)
