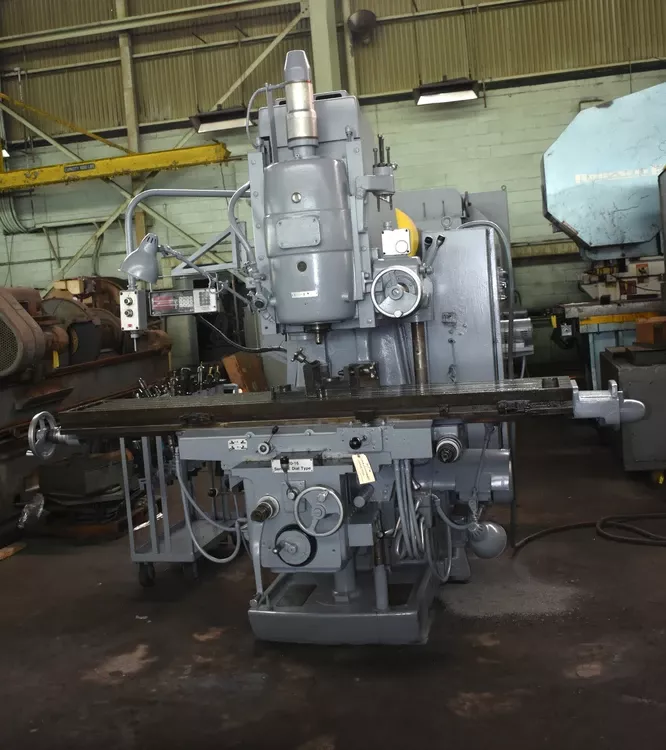

Cincinnati Milacron 520-16 Vertical 1600 RPM

Table Width: 16.25"
Table Length: 87.75"
Longitudinal Travel (X-Axis): 50"
Cross Travel (Y-Axis): 16"
Knee Vertical Travel (Z-Axis): 14"

Spindle-Head Vertical Travel (Z-Axis): 6"
Spindle-Nose to Table Min: 0"
Spindle-Nose to Table Max: 20"
Spindle-Center to Column: 18"
Spindle Taper: #50 NSTD

Horizontal Spindle Speeds: 16–1600 RPM
Longitudinal and Cross Feeds: 3/8–90 IPM
Vertical Head Feeds: 3/16–45 IPM
Vertical Knee Feeds: 3/16–45 IPM
Power Rapid Traverse Long & Cross: 150 IPM
Power Rapid Traverse Vertical: 75 IPM
Spindle Motor: 20 HP
Feed Motor: 5 HP
Machine Weight: 12,500 LBS

Features / Equipment
Trak 2-Axis Digital Readouts
Power Draw Bar - Hard Ways
Power Down-Feed to Head - Turret Depth Stop
Automatic Backlash Eliminator
Coolant System (Built-In)
Rack Full of Tooling
