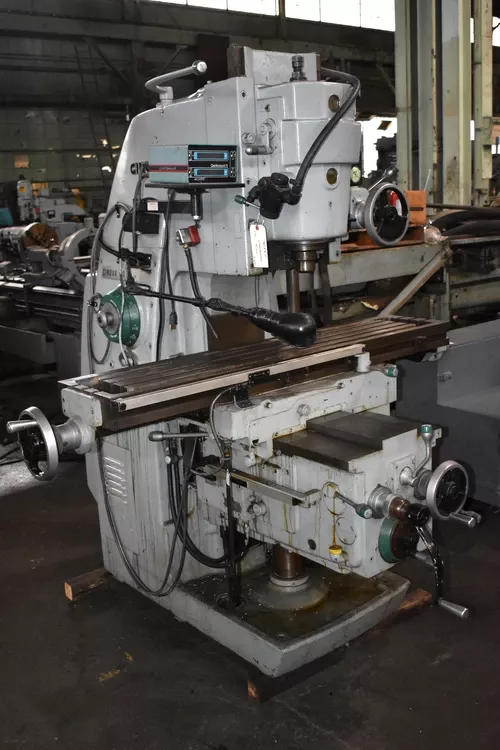

Cincinnati Milacron CINOVA 80 Vertical 2000 RPM

Table Width: 12"
Table Length: 56.5"
Longitudinal Travel (X-Axis): 28"
Cross Travel (Y-Axis): 10"
Knee Vertical Travel (Z-Axis): 14"
Spindle-Head Vertical Travel: 4"
Spindle-Nose to Table Max: 18"
Spindle-Nose Diameter: 5.06"
Spindle Taper: #50 NSTD
Spindle Speeds: 25–2000 RPM
Longitudinal and Cross Feeds: 1/4–30 IPM
Vertical Head Feeds: 1/8–15 IPM
Rapid Traverse Longitudinal & Cross: 150 IPM
Rapid Traverse Vertical: 75 IPM
Spindle Motor: 5 HP
Feed Motor: 1.25 HP
Electrical System: 220–440 V / 3 Phase / 60 Hz
Machine Length: 8'1"
Machine Width: 7'4"
Machine Height: 7'2"
Machine Weight: 5600 LBS

Features / Equipment
Acu-Rite Quikcount II 2-Axis Digital Readouts
Knee Motor
Power Down-Feed to Head
Vertical Turret Stops (4-Position)
Coolant System (Built-In)
