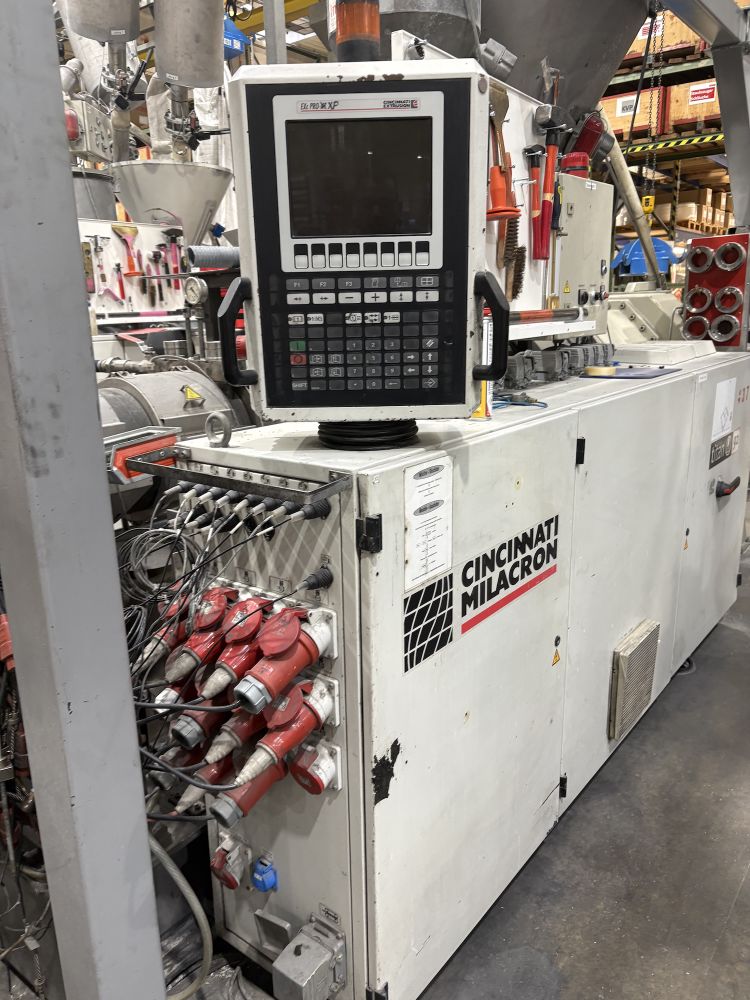

Cincinnati Titan92P

Year of manufacture: 1998
Running hours: 74.960 h
Output rate: up to 600 kg/h (u-PVC)
Motor: 91.6 kW (DC-drive)
Max. screw speed: 22.0 rpm
Gearbox equipped with central lubrification
Air cooled barrel with 5 heating zones
Barrel degassing via vacuum pump and vacuum filter
Original screws for u-PVC window profile Molybdenum coated
Active screw core cooling with separate heating/cooling device
Original barrel standard nitrided
Horizontal dosing feeder incl. material hopper

Heating zones:
12 x 3-ph 5pin CEE 5.5 kW
1 x 3-ph 5pin CEE 5.5 kW for adapter
13 x TC Type J 16 mm Tuchel C70B 3-pol. 4m
Overall dimensions (l x w x h): 5.672 x 1.484 x 2.500 mm, weight: 6.500 kg

Condition: in good running condition
