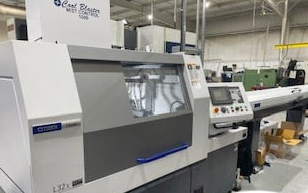

Citizen CINCOM SYSTEM M70LPC-VU (Mitsubishi) 8000 rpm L32-1M10 (Type X) 2 Axis

Citizen CAV32-CAV32LE barloader
CTZ-LFV-N1 low frequency vibration
CB510H-10L-L32T10-M1, 10 line H.P. unit
Coolblaster mist control unit
Main spindle collet device
38 mm channel set
LNS hinge belt chip conveyor
Bar capacity 32 mm (38 mm option)
Max machining diameter 32 mm (38 mm option)
Max machining length GB 320 mm / 1 chucking NGB 2.5D
Spindle through-hole diameter 39 mm
Main spindle speed 8000 rpm
Back spindle max chuck diameter 32 mm
Back spindle max protrusion length 65 mm
Back spindle max taking-out length 140 mm
Back spindle speed 8000 rpm
Gang rotary tool spindle speed 9000 rpm
Back tool post rotary tool spindle speed 6000 rpm (rating 3000 rpm)
Number of tools to be mounted 24–44
