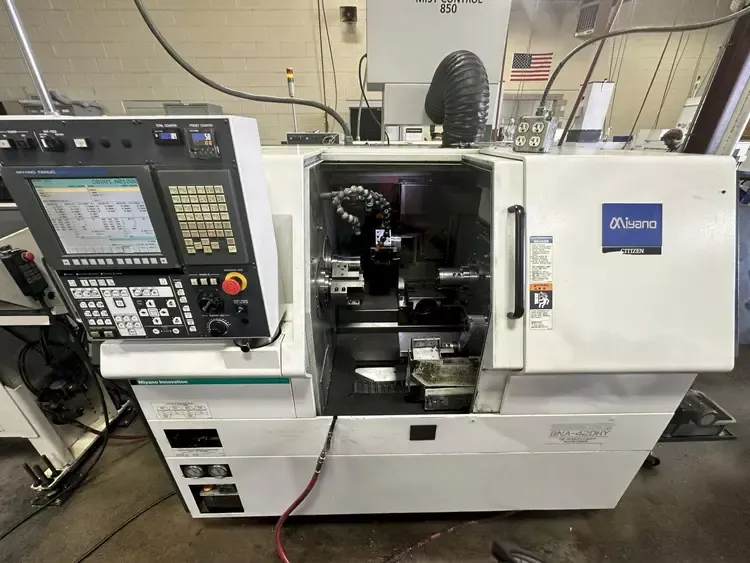

Citizen, Miyano Miyano Fanuc 0i-TD CNC Control 6,000 rpm BNA-42DHY 7 Axis

X-Axis Travel: 5.51 in
X2-Axis Travel: 5.51 in
Z-Axis Travel: 9.25 in
Z2-Axis Travel: 12.20 in
Y-Axis Travel: 2.75" ± 1.37"
C1/C2 Axis Index: 0.001°
Control Unit: Fanuc 0i-TD CNC
Bar Capacity: 1.65 in
Chuck Size Main: 5 in
Chuck Size Sub: 5 in
Spindle Speed Main: 6,000 rpm
Spindle Motor Main: 10 hp
Spindle Speed Sub: 5,000 rpm
Spindle Motor Sub: 7.3 hp
Live Tooling: Yes
Live Tooling Speed: 5,000 rpm
Live Milling Motor: 3.7 hp
Machine Weight: 6,400 lb
Sub Spindle: Yes
Spindle Nose: Flat
Center Distance: 3.94 in
Number of Axes: 7
Turret Stations Main: 8
Turret Stations Sub: 6

Equipped with Miyano Fanuc 0i-TD CNC Control
Equipped with Edge Technologies M-542 Bar Feeder
Equipped with Cool Blaster Coolant Thru System
Equipped with Cool Blaster Mist Control 850
