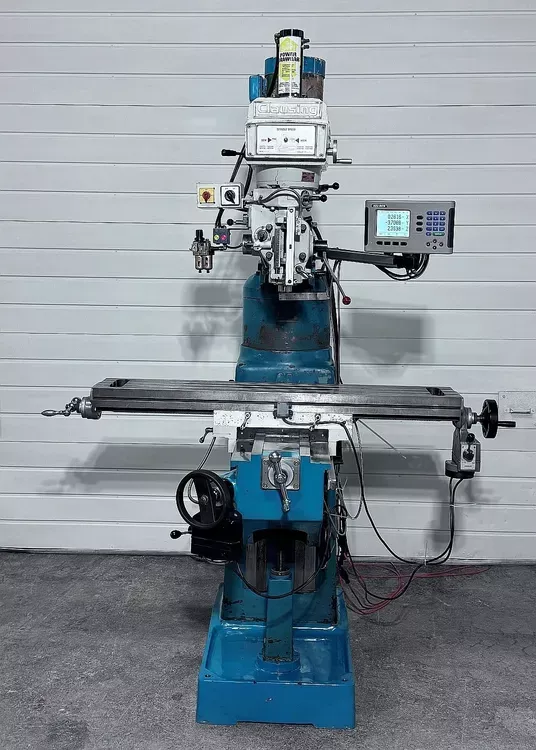

Clausing 3VS08 Vertical 4300 rpm

Machine Type: Knee Mill
Control: Manual Variable Speed
Table Size: 10" × 54"
X Travel: 39.6"
Y Travel: 15.6"
Knee Travel: 15"
Ram Travel: 22"
Spindle Speed Range: 60–4300 rpm
Low Speed Range: 60–500 rpm
High Speed Range: 550–4300 rpm
Spindle Motor Power: 3 HP
Spindle Taper: R8
Quill Travel: 5"
Quill Feed: 0.0015 / 0.0031 / 0.006 in/rev
Quill Diameter: 3.38"
Column Turret Diameter: 14.96"
Knee Width: 12.99"
Column Bearing Length: 17.91"
Saddle/Table Bearing Length: 20.28"
Ram/Turret Bearing Length: 17.32"
Ram Length: 32.68"
Table Load Capacity: 665 lbs
Machine Weight: 3,595 lbs
Voltage: 460V, 3 Phase
Footprint (L×W×H): 101" × 78" × 87"

Equipped With
Air Operated Power Drawbar
Acu-Rite 3-Axis (Quill DRO)
X-Axis Servo Power Feed
Y-Axis Servo Power Feed
Accordion Style Rubber Way Covers
8" Riser Block
Coolant Mist System (1 Gallon)
