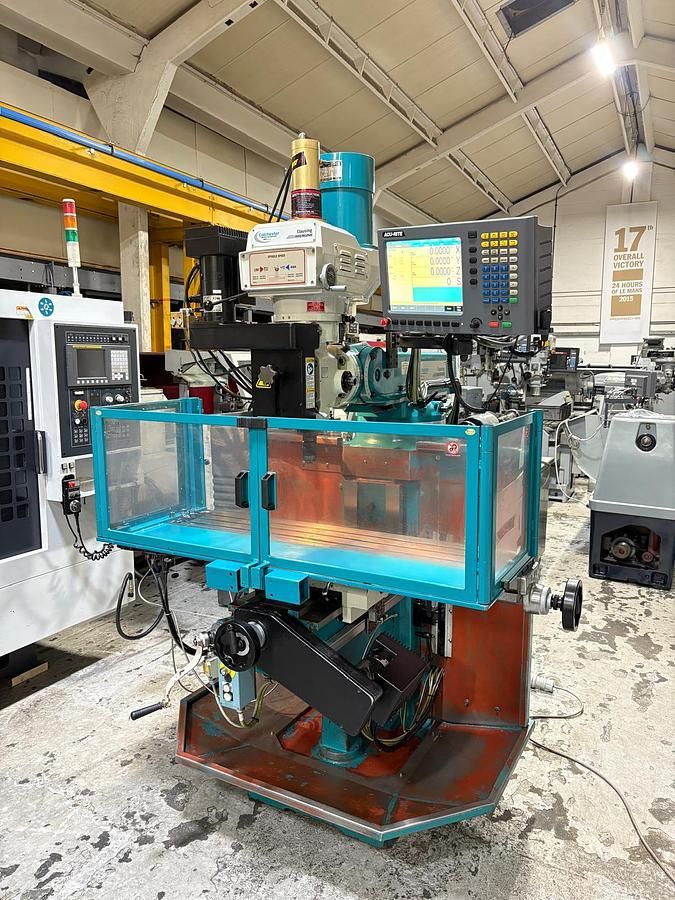

Clausing Colchester 4VSQ MILLPWRG2 Vertical 500 rpm

X-axis travel: 1050 mm
Y-axis travel: 390 mm
Z-axis travel (quill): 115 mm
Knee vertical travel: 355 mm
Ram adjustment: 555 mm
Control: ACU-RITE MILLPWR G2 3-axis
Air drawbar
Automatic lubrication
Coolant system
Low voltage light
Interlocked table guards
Power rise and fall knee
Swarf tray
Table size: 1370 x 254 mm
Spindle speed low range: 60–500 rpm
Spindle speed high range: 550–4300 rpm
Spindle motor: 3.75 kW
Spindle taper: ISO 40
Quill diameter: 100 mm
Quill feed per revolution: 0.038 / 0.076 / 0.15 mm
Head swivel: ±90°
Head tilt: ±45°
Throat depth: 660 mm
Weight: 1850 kg
