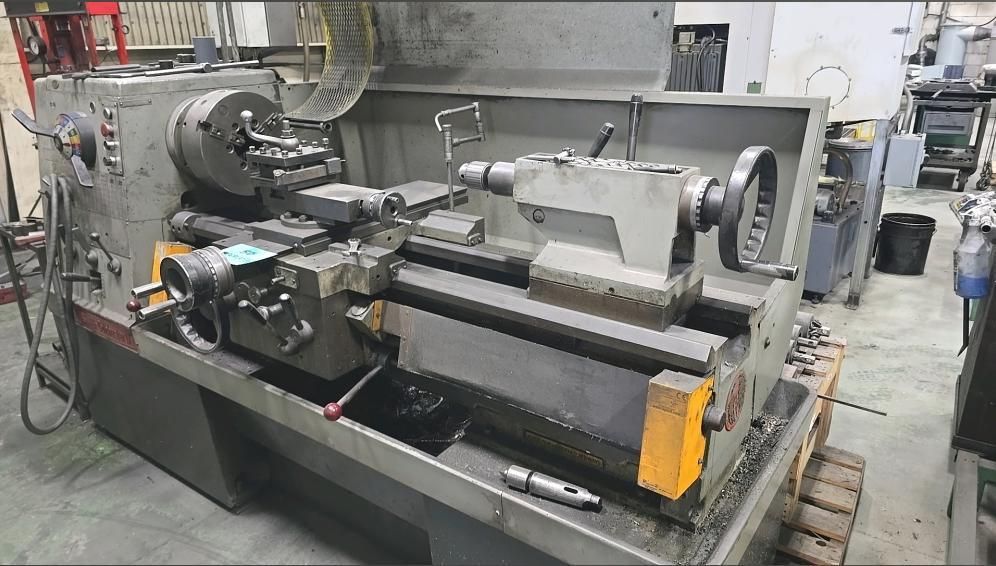

Clausing Colchester Engine Lathe 1,600 RPM 17"X40"

Ref : 2756890-3-AW

Condition : Used

Manufacturer : Clausing Colchester

Type : Engine Lathe

Spindle Speed : 1,600 RPM

Model : 17"X40"

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing over bed: 17 inches
Swing over cross slide: 10.5 inches
Distance between centers: 40 inches
Spindle speeds: 20-1,600 RPM
Spindle nose: D1-8
Hole through spindle: 3 inches
Threads inch: 2-72 TPI
Threads metric: 0.4-14 MM
Feeds: 0.002"-0.016"
Cross slide travel: 12 inches
Tailstock quill taper: #5 MT
Tailstock quill travel: 7 inches
Dimensions (L x W x H): 138" x 42" x 52"
Weight: 7,000 lbs
Electric requirement: 480V/3ph
Equipped with tailstock
