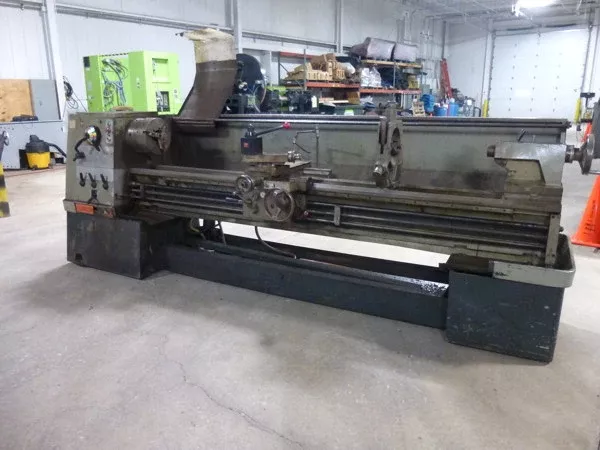

Clausing Colchester Engine Lathe 1400 RPM CLAUSING COLCHESTER

CLAUSING COLCHESTER
Year: 1980


Max Swing Over Bedways: 21"
Swing Over Cross Slide: 14"
Spindle Nose: D1-11 Camlock
Spindle Bore: 3 9/16"
Spindle Speeds: 18-1400 RPM
Distance Between Centers: 120"
Longitudinal Feed Range: .002" - .032"
Cross Feeds: .001" 1 .016"
Threads: 2 - 72 TPI
Metric Threads: .4 - 40mm (40)
Tailstock Taper: 5 MT
Cross Slide Travel: 11"
Total Track Guide Length: 129"
Main Motor Drive: 12.5 HP
Amperage: 33.2
Current Electrical Arrangement: 230/3/60

Equipped With
(3) Jaw Chuck
Tailstock
Chip Pan Bed
Dial Thread Chasing Attachment
(3) Point Roller Bearing Steady Rest
Doiran Quick Change Tool Post

Approximate Dimensions: 160"(LR) X 36"(FB) X 54"(H)
Approximate Weight: 7,500 Lbs.
