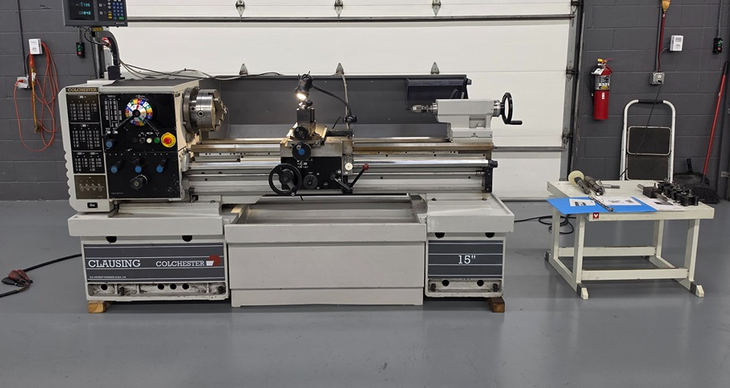

Clausing Colchester Engine Lathe 2000 RPM 8043

Swing Over Bed: 15.75 in
Swing Over Cross Slide: 9.7 in
Swing in Gap: 23 in
Distance Between Centers: 50 in
Spindle Bore: 2.125 in
Spindle Nose: D1-6
Spindle Nose Taper: 4 MT
Spindle Speed Range: 25–2000 RPM
Number of Spindle Speeds: 16
Bed Width: 12.5 in

Cross Slide Travel: 9.8 in
Compound Travel: 5.1 in
Tailstock Quill Diameter: 2.8 in
Tailstock Quill Travel: 5.5 in
Tailstock Quill Taper: 5 MT

Longitudinal Feed Range: 0.0014–0.048 in/rev
Cross Feed Range: 0.0007–0.024 in/rev
Inch Thread Range: 2–56 TPI
Metric Thread Range: 0.2–14 mm
Diametral Pitch Range: 8–56 DP
Module Pitch Range: 0.2–3.5

Spindle Motor Power: 7.5 HP
Power Supply: 230 V, 3-Phase

Machine Dimensions: 99 in × 44 in × 63 in
Machine Weight: 4,000 lb

Acu-Rite 2-Axis DRO
10 in 3-Jaw Chuck (Bison)
Aloris Quick Change Tool Post
Quick Change Tool Holders
2 Drill Chucks (Keyed & Keyless)
Tee Wrench
Splash Guard & Chip Pan
Coolant Pump
Work Light
