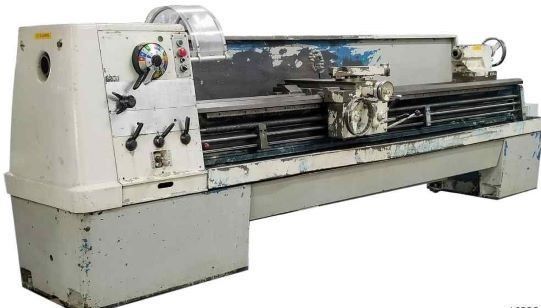

Clausing Engine Lathe 1600 rpm 17" 8000 SERIES / 8056 ENGINE LATHE
Ref :
2798766-3-MT
Condition :
Used
Manufacturer :
Clausing
Type :
Engine Lathe
Spindle Speed :
1600 rpm
Model :
17" 8000 SERIES / 8056 ENGINE LATHE
Year(s) :
1976
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
centre distance 100 in
centre height not specified
max swing over bed 17 1/4 in
max swing over cross slide 10 1/2 in
spindle speeds 16 steps
spindle speed range 20–1600 rpm
spindle nose 8" D1 camlock
spindle bore 3 1/16 in
bar capacity 3 in
tailstock taper MT5
tailstock quill travel 7 in
feed system longitudinal feeds 45 ranges (0.002–0.032 in)
cross feeds 0.001–0.016 in
cross slide travel 12 1/4 in
spindle motor 10 hp
power supply 440 V, 3-phase
