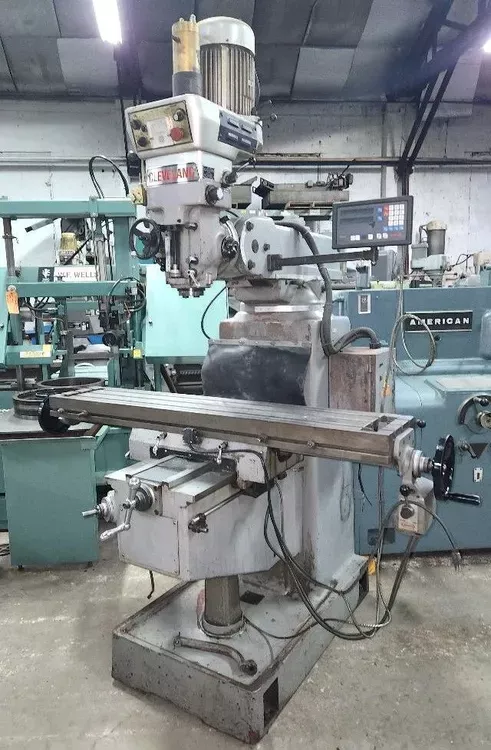

Cleveland K5 Vertical 3,600 RPM

Table Width 11"
Table Length 58"
X-Axis Travel 43"
Y-Axis Travel 18"
Z-Axis Travel 19-11/16"
Quill Travel 6"
Spindle Nose to Table 3/4" – 16-3/4"
Spindle Center to Column 2-5/8 – 25-1/2"
Ram Travel 19"
Rigid Head Swivels Left to Right 90 Degrees
Spindle Taper NST #40
Spindle Speed Range LO 70–425 RPM
Spindle Speed Range HI 600–3,600 RPM
Quill Large Diameter 4.125"
Quill Feed .002", .004", .006"
Spindle Motor 5 HP
Power 5 HP
Coolant System
Work Light
Chip Pan
Floor Space 106" × 72" × 90"
Weight 4,000 lbs
Power Draw Bar
Two Power Feeds (Table and Saddle Axis)
Newall 2-Axis Model 20I-M
