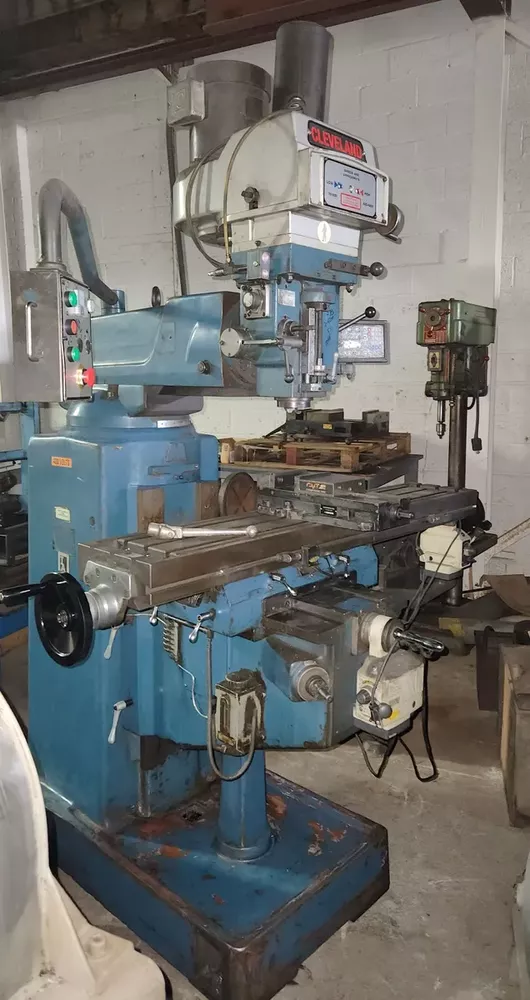

Cleveland K5V Vertical 3600 rpm

X Axis Travel: 43″
Y Axis Travel: 18″
Z Axis Travel: 19.6875″
Quill Travel: 6″
Ram Travel: 19″
Newall 2 Axis DRO
Power Feed X Axis
Power Feed Y Axis
Power Drawbar
One Shot Lubrication
Spindle Speed Low Range: 70 – 425 rpm
Spindle Speed High Range: 600 – 3600 rpm
Spindle Taper: NST 40
Spindle Motor Power: 4 HP
Head Swivel Left/Right: 90°
Quill Feed: 0.002″
Quill Feed: 0.004″
Quill Feed: 0.006″
Table Size: 58″ x 11″
T-Slots: 0.63″ x 3
Table Load Capacity: 1200 lbs
Spindle Nose To Table: 0.75″ – 16.75″
Spindle Center To Column: 2.625″ – 25.5″
Machine Length: 106″
Machine Width: 72″
Machine Height: 90″
Machine Weight: 4000 lbs
