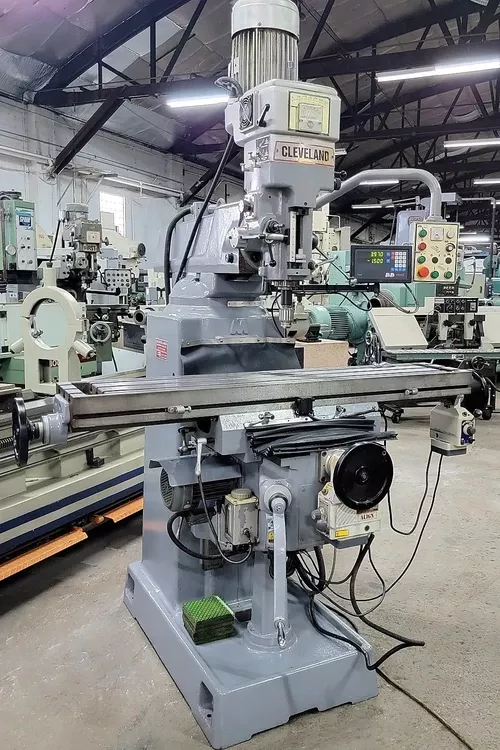

Cleveland K6F Vertical 3600 RPM

CLEVELAND K6F
2000

Table Width: 11"
Table Length: 58"
X-Axis Travel: 43"
Y-Axis Travel: 18"
Z-Axis Travel: 19-11/16"

Quill Travel: 6"
Spindle Nose to Table Distance: 3/4" – 16-3/4"
Spindle Center to Column: 2-5/8" – 25-1/2"
Ram Travel: 19"
Table T-Slot Size and Number: 0.63" x 3
Max Table Load (Center): 1200 lbs
Spindle Taper: #40
Spindle Speed Low Range: 70 – 425 RPM
Spindle Speed High Range: 600 – 3600 RPM
Quill Diameter: 4.125"
Quill Feed Rates: 0.002", 0.004", 0.006"
Spindle Motor: 4.5 kW
Power: 6 HP
Coolant System
Work Light
Floor Space: 106" x 72" x 90"
Machine Weight: 4000 lbs
Rigid Head Swivels Left/Right 90°
2 Servo Feeds Type 150 on Table and Saddle Axis
Newall 2-Axis Digital Readout System
Rapid Traverse on Knee
