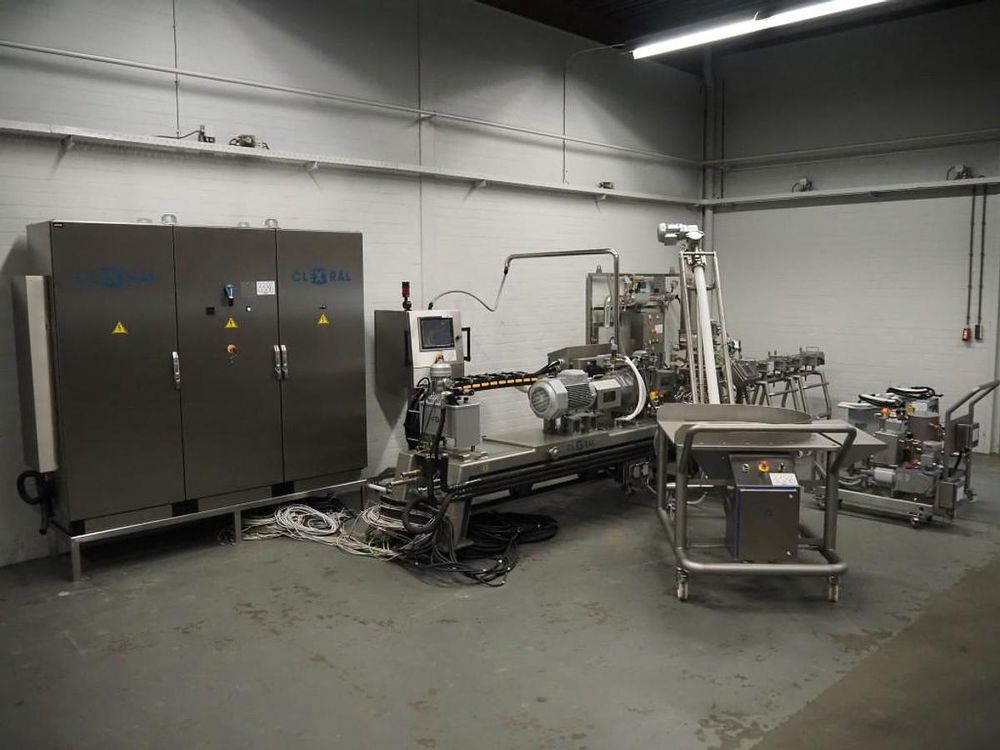

Clextral Evolum EV032 M double screw extruder

Clextral extruder
Type Evolum EV032 M
Extruder 40D
Barrel length 10 x 128 mm
Stroke length 1420 mm
Water 4.5 - 5.5 Bar
Compressed air 6 Bar
Steam injection 2 - 6 Bar
Power 3 x 400V, 50Hz, 83kW
Dimensions 4475 x 1200 x 2100 mm
Weight 1905 kg
Only 80 working hours!


Clextral water pump
Type CLX DKM
Flow 6 - 42 l/h
Pressure max 10 Bar
Reservoir 7.5 litre
Power 0.55 kW
Dimensions 1265 x 350 x 700 mm


Clextral / Prominent oil pump
Type GMXA1604
Flow 0.3 - 2.5 l/h
Pressure max 10 Bar
Reservoir 10 litre
Dimension 900 x 700 x 1150 mm

Clextral High Moisture Extrusion Cooking die
HMEC type 2 x 800 mm length
Material CLX202
Internal section 60 x 8 mm
Dimensions 1900 x 700 x 1200 mm

TLV steam kit
Type 2/10 TLV
Steam flow 2 - 10 kg/h
Steam pressure 6 - 10 Bar
Maximum pressure 10 Bar
Steam inlet DN15, PN16
Steam outlet DN15, PN16
Compressed air 6 - 10 Bar
Dimensions 700 x 1600 x 2200 mm
Weight 150 kg


2 pc. Tooltemp thermoregulator
Type TT1398-3
Year of construction 2021
Power 3 x 400V, 50Hz, 7.9kW
Dimensions 750 x 300 x 760 mm
Weight 70 kg


WAM Group plowshear mixer
Type WBH20008C023
Year of construction 2022
Mixer 75 litres
Dimensions 1200 x 1600 x 1650 mm
Weight 500 kg


Immequip feeding screw
Type ELV 70/80-R
Hopper 150 litres
Outfeed Ø 100 mm
Power 3 x 400V, 50Hz, 0.55kW
Dimensions 3100 x 1350 x 2600 mm

Brabender dosing unit
Type DDW-M-DDSR20
Year of construction 2022
Feed rate 11 - 26 kg/h


MTA France chiller
Type TAEevo TECH 081
Year of construction 2021
Refrigerant R410A
Cooling power 20.6 kW
Power 3 x 400V, 50Hz, 14.2kW
Dimensions 1950 x 800 x 1500 mm
Weight 340 kg
