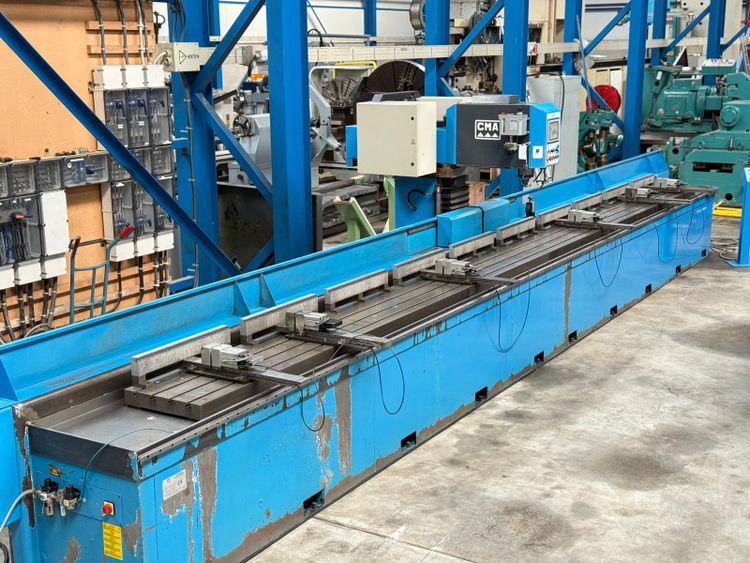

CMA TRD40 CNR 3,000 RPM
Ref :
2782982-3-MT
Condition :
Used
Manufacturer :
CMA
Model :
TRD40 CNR
Spindle Speed :
3,000 RPM
Year(s) :
2011
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Table Length: 9,000 mm
Table Width: 520 mm
X-Axis Travel: 9,000 mm
Y-Axis Travel: 650 mm
Z-Axis Travel: 400 mm
Spindle Taper: BT40
Maximum Table Load: 9,000 kg
Spindle Speed: 10–3,000 RPM
Spindle Power: 4.4 kW
External Spindle Cooling
Tool Magazine Capacity: 10 positions
Equipped with 6 Pneumatic Clamps
Drilling Capacity: up to 40 mm ø
Tapping Capacity: up to M27
Machine Size (L×W×H): 11,700 × 2,400 × 2,100 mm
Machine Weight: 6,800 kg
