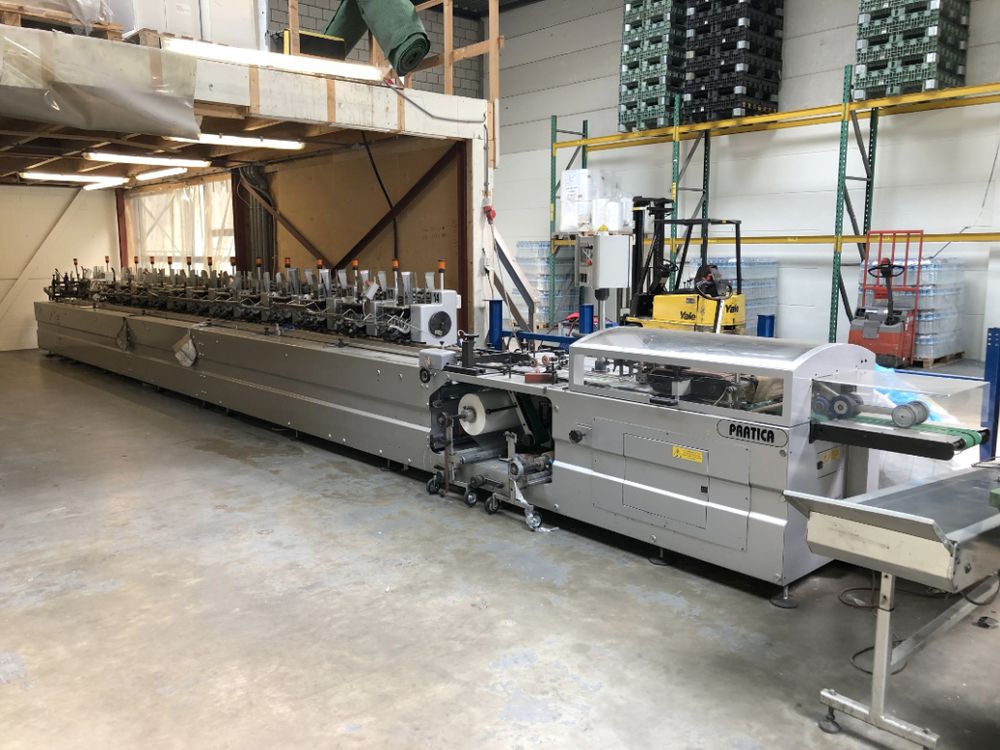

Cmc Up-Grade Pratica Inserting and packing line

Inserting machine and packaging machine line
Equipped with:
– main product feeder A8 with 2 vacuüm heads
– A9 mechanical first page opener
– 14 stations A14P (where as 2 units are equipped with Sep 1 Disk attachment for processing of oblong folded products)
– infeed belt to foil unit
– foil unit
– RA4oz belt for sealed products, with kicker for bundling. Length is 4 meter.

Pratica is an automatic film-wrapping machine for magazines, newspapers, catalogues and direct mail
with a cycling speed of approx. 12.000 pieces per hour: suitable for mailing houses, print finishers ...

Technical details:
A14p
– Sheetfeeder for documents, equipped with single gripper
– Min. size: 80 mm x 110 mm.
– Max. size: 250 mm x 350 mm.
– Max. paper weight 70 gr.
– Max. thickness 5 mm

A8
– First Page Opener with 2 vacuüm heads
– suited for 80 gr/m2 paper

A9
– Mechanical First Page Opener.
– suited for 80 gr/m2 paper

Sep1
– Rotary Disk seperator for A14p sheetfeeder. Mounted inside the station, the Disk Seperator is made to feed ‘oblong’ folded documents and documents with a staple in the corner. 1 side is closed.
The product is feeded by the closed side by a single sucker, where the document is seperated and feeded by the disk.
– Two A14p stations are implemented with Sep1 option.

RA40z
– Belt for sealed products, with kicker for bundling. Length is 4 meter
Condition used
