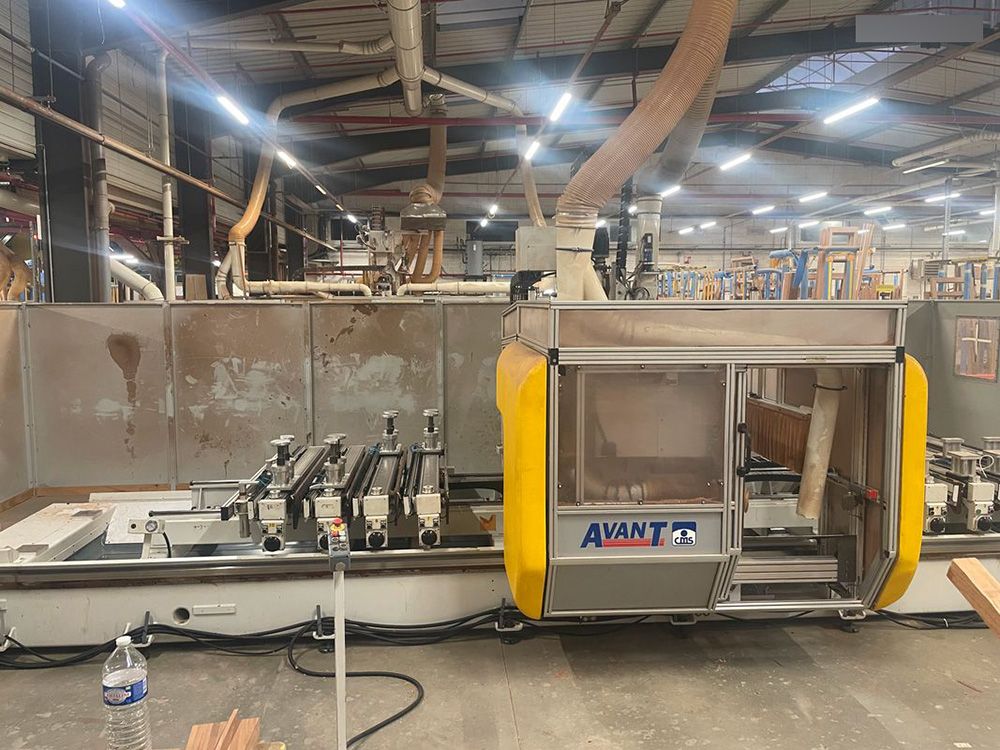

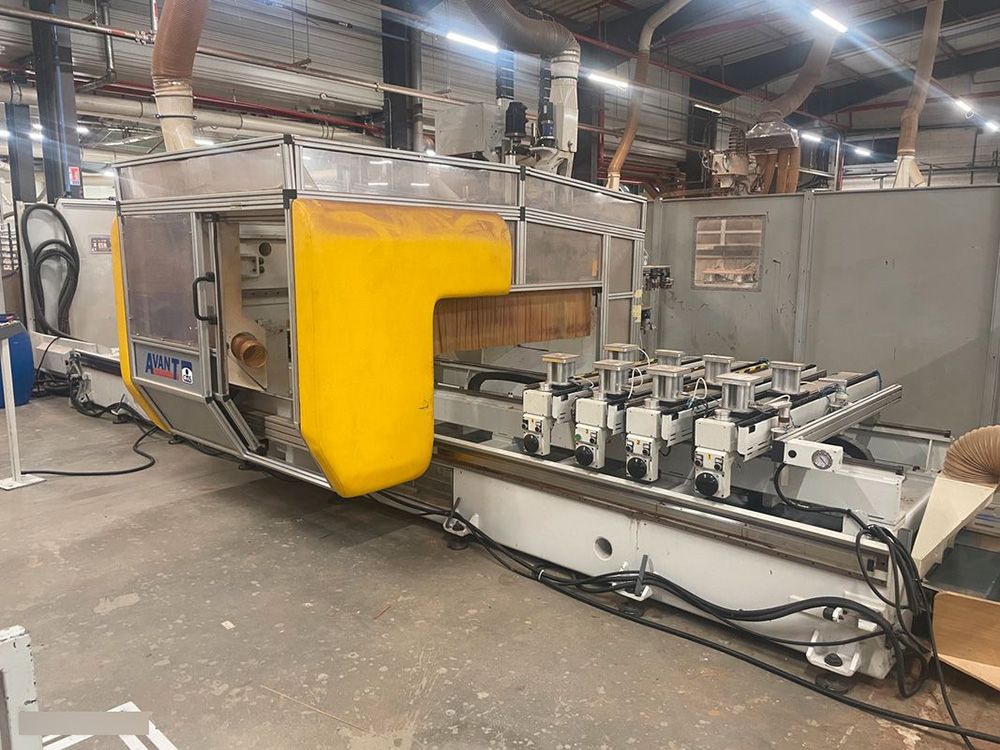

CMS Avant-1/B-560-TX3/RR 4-axis

4-axis CMS with sliding bridge, Avant-1/B-560-TX3/RR with CNC table.
Sliding bridge design with two racks. Fixed table during machining.

Welded steel frame stabilized by double heat treatment
Mobile bridge supporting a set of two cross-slide carriages for transverse and vertical movement
Travels:
Y-axis: 5600 mm
X-axis: 2050 mm
Z-axis: 300 mm

Working and positioning speeds:
Y-axis: 0 to 60 m/min, positioning speed: 60 m/min
X-axis: 0 to 100 m/min, positioning speed: 100 m/min
Z-axis: 0 to 30 m/min, positioning speed: 30 m/min
Automatic centralized lubrication
TX3 vertical head with tool changer mounted on a Z-TX3/12/L vertical carriage
Head power: 15 kW at 18,000 rpm
Programmable rotation speed: 1800 to 24,000 RPM
HSK63E Cone
2 Rotary tool magazines with 16 stations each, for a total of 32 stations
Maximum tool diameter: 250 mm
Maximum blade diameter: 400 mm
8 crossbeams with longitudinal positioning controlled by 8 CNC axes
8 CNC positions in the transverse direction for positioning vises and suction cups
Chip removal conveyor
2 dry vacuum pumps

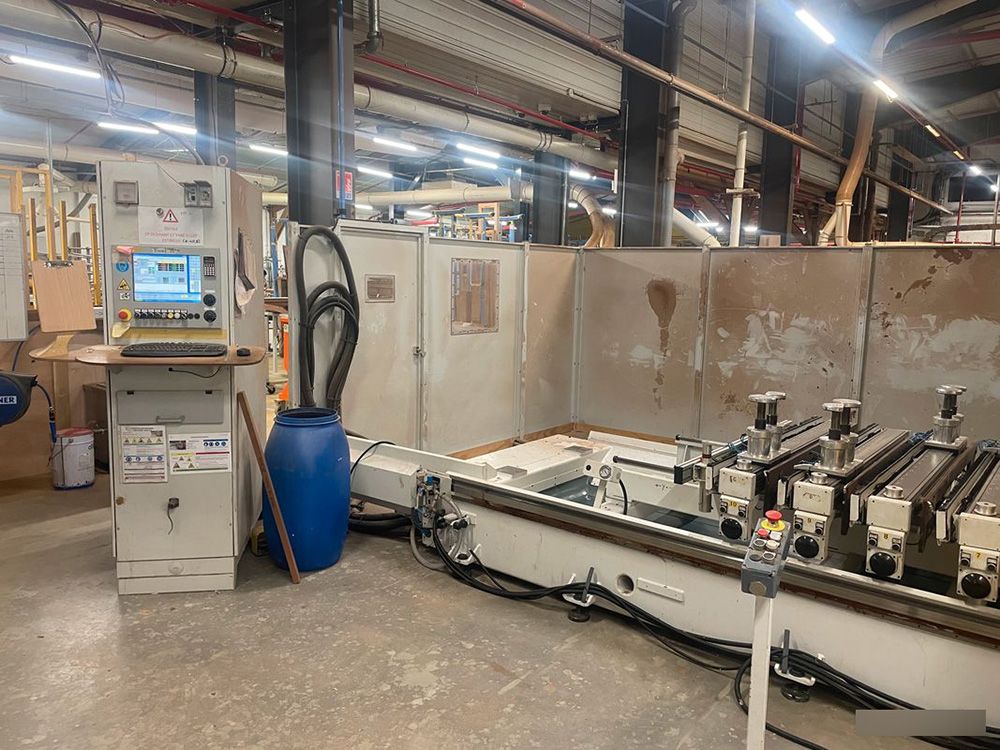

OSAI S 10/510i CNC control
