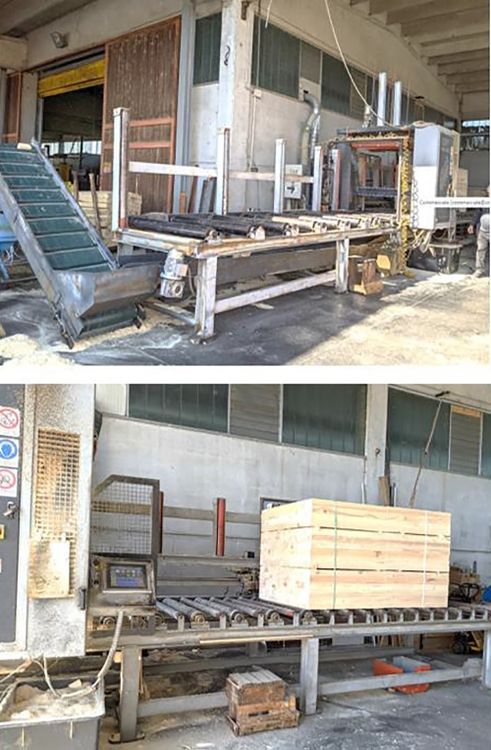

CMS IM 120 EL

Crosscut Station on the Package of Timber IM 120 EL
Complete sawn timber bale cutting station
Sawn timber bales at the input: 1230 x 1250 mm, machine cut settings – automatic or manual
Input section for sawn timber bales from the left side
Input conveyor for sawn timber bales 5000 mm long (sawn timber bales 6 m long at the input)
Output conveyor 5000 mm long, of which 2200 mm driven
Cut lengths: min. 600 mm, max. 3500 mm
Strapping of lumber packages on the input table - according to spacing and cut lengths
Bottom belt for waste wood + inclined for removal

CE machine standards
The machine is currently being serviced by the manufacturer (see description below)
Transport height of the machine body: 2900 mm
The machine is in GOOD CONDITION and FUNCTIONAL
