CMZ FANUC 31i 4000 rpm TC20 YS 4 Axis

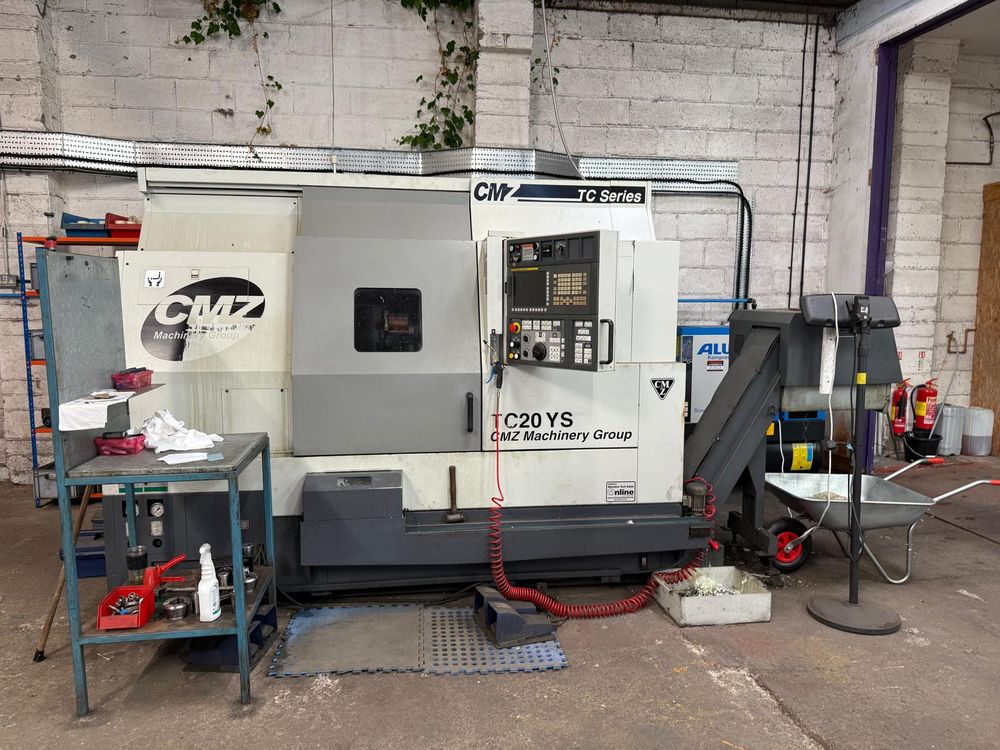

CMZ TC20 YS
2011

Bar capacity: 66 mm
C axis resolution: 0.001°
Control: FANUC 31i
Distance between spindles: 803 mm
Machine dimensions: 2803 x 2020 x 2236 mm
Machine weight: 7200 kg
Milling motor power: 12 kW
Milling speed: 4000 rpm
Rapid feedrates XYZB: 30 x 15 x 30 x 30 m/min
Main spindle motor power: 22/15 kW
Main spindle nose: A2-6
Main spindle speed: 4000 rpm
Sub spindle B-axis movement: 803 mm
Sub spindle bar capacity: 46 mm
Sub spindle C axis resolution: 0.001°
Sub spindle motor power: 14/8 kW
Sub spindle nose: A2-6
Sub spindle speed: 5000 rpm
Swing: 920 mm
Swing over carriage: 745 mm
Tool size: 25 x 25 mm
Turret positions: 16 stations
X axis travel: 315 mm
Y axis travel: +80 / -60 mm
Z axis travel: 800 mm
C axis on main spindle
C axis on sub spindle
Collet chuck
Collets
Coolant system
Interlocked guards
Low voltage light
Parts catcher
Sub spindle
Swarf conveyor
Tool setter
Y axis enabled
