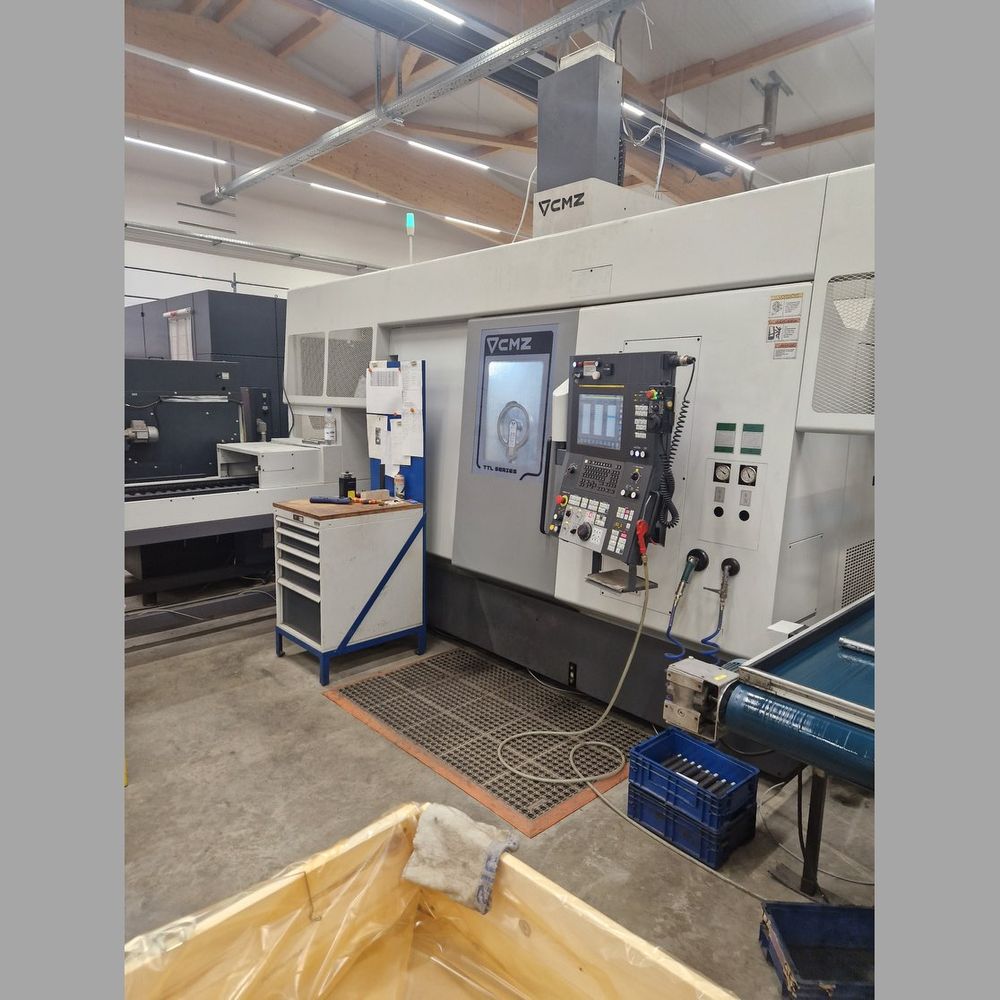

CMZ Fanuc 31i B 4000 1/min TTL-66-66-T1Y-T2Y+GL20II 3 Axis

X-axis travel opposed spindle unit: 240 mm
Z-axis travel opposed spindle unit: 580 mm
C-axis at main spindle unit
C-axis at opposed spindle unit

Tailstock quill reception: CM 3
Max. turning diameter: 220 mm
Max. workpiece length: 614 mm
Max. swing diameter over bed cover: 240 mm
Max. clamping chuck diameter: 210 mm
Max. distance between spindle noses: 800 mm
Max. speed main spindle: 4000 1/min

Main spindle power: 35.5/23.5 kW at 10–40/100% duty ratio
Main spindle torque: 205/150 Nm at 10–40/100% duty ratio
Main spindle bore: 72.5/66 mm
Front bearing diameter main spindle: 110 mm
Spindle flange main spindle: ASA 6 A2
Max. speed opposed spindle: 4000 1/min

Opposed spindle power: 35.5/23.5 kW at 10–40/100% duty ratio
Opposed spindle torque: 205/150 Nm at 10–40/100% duty ratio
Opposed spindle bore: 72.5/66 mm

Front bearing diameter opposed spindle: 110 mm
Spindle flange opposed spindle: ASA 6 A2

Upper turret stations/driven: 12/12
Upper turret tool reception: 20x20/25x25 mm
Upper turret tool drive speed: 12000 1/min
Upper turret tool torque: 42/32 Nm
Upper turret X/Y/Z travel: 167.5/90/515 mm
Upper turret max. rapid traverse X/Y/Z: 30/20/30 m/min
Upper turret max. acceleration X/Y/Z: 1/1/1 g

Lower turret stations/driven: 12/12
Lower turret tool reception: 20x20/25x25 mm
Lower turret tool drive speed: 12000 1/min
Lower turret tool torque: 42/32 Nm
Lower turret X/Y/Z travel: 167.5/90/515 mm
Lower turret max. rapid traverse X/Y/Z: 30/20/30 m/min
Lower turret max. acceleration X/Y/Z: 1/1/1 g

Control: Fanuc 31i B
Tool measurement
Tool breakage monitoring
Tool lifetime monitoring
Fully enclosed work area
Rotating disc window
Work area lighting

Oil/emulsion mist extraction unit
Chip conveyor
Coolant unit
High pressure pump: 35/15/6 bar
Part infeed conveyor
Part outfeed conveyor
Internal gantry-type loading/unloading unit
Warning lamp
2 pc. collet chuck (Hainbuch Axfix 65)
1 set tool holder for turning tools
1 set tool holder for driven tools
Total power requirement: 87 kVA
Machine dimensions LxWxH: 2860x2377x2289 mm
Machine weight: 11000 kg
