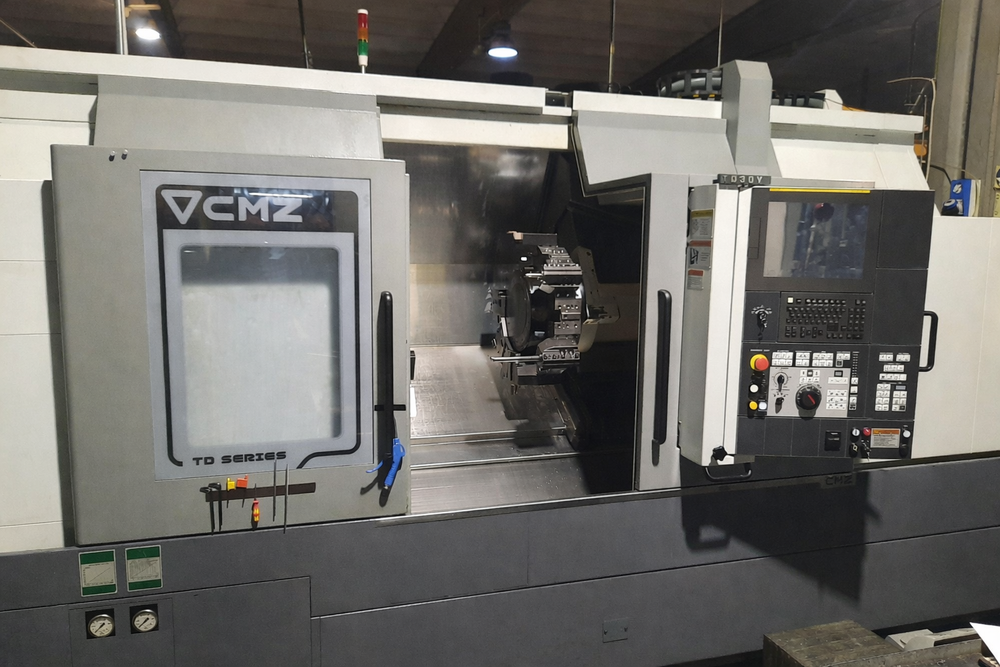

CMZ FANUC 3500 RPM TD30Y/1350 3 Axis
Ref :
2789362-3-AW
Condition :
Used
Manufacturer :
CMZ
Controller :
FANUC
Spindle Speed :
3500 RPM
Model :
TD30Y/1350
Nb Of Axis :
3 Axis
Year(s) :
2021
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
CNC control: FANUC
Max swing over bed: 950 mm
Max swing over carriage: 715 mm
Max turning diameter: 550 mm
Spindle speed: 3500 RPM
Spindle nose: ASA 8" A2
Spindle bore: 82 mm
Spindle power: 40 kW (max) / 25 kW (S6 40%)
Spindle torque: 1020 Nm (max) / 720 Nm (S6 40%)
Z-axis travel: 1350 mm
Turret: 12 positions
Live tooling power: 13 kW
Live tool torque: 105 Nm
Live tool speed: 12000 RPM
Tailstock: CM5
C-axis: not specified
Y-axis: not specified
Chip conveyor: not specified
Live tools: not specified
